SELECT A DIAGRAM

01 - Unit, Literature

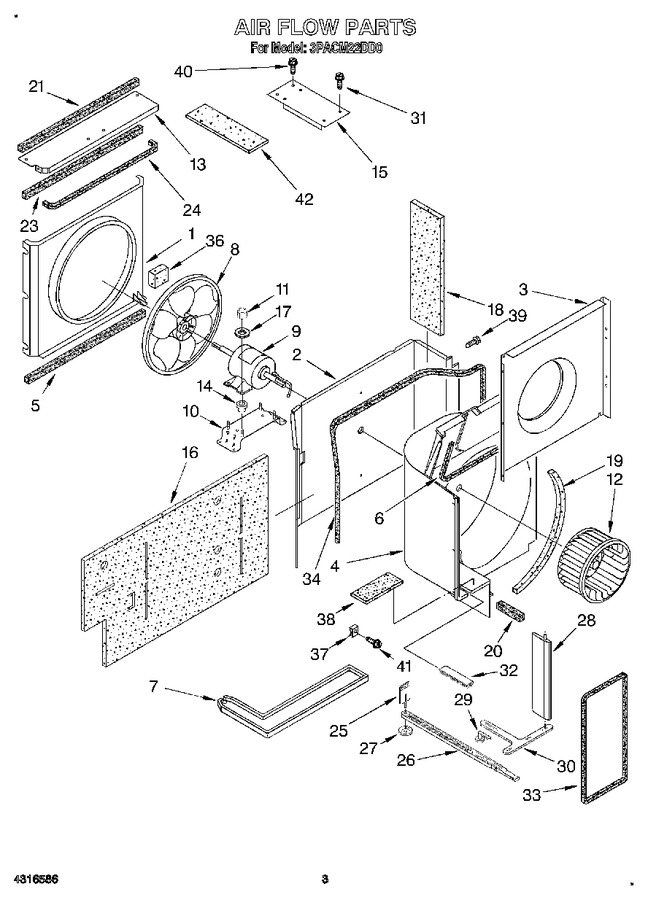

02 - Air Flow


03 - Cabinet


04 - Control Module


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180257		Shroud, Condenser		Appelez-nous	-
2	1181186		Wall, Dividing		Appelez-nous	-
3	1180252		Shroud, Evaporator		Appelez-nous	-
4	1180250		Housing, Air		Appelez-nous	-
5	1180826		Seal		Appelez-nous	-
6	WP854334		Seal (housing/hp Cover)   (Replaces: 1180412)				$ 13.94
7	1180286		Pan, Drain		Appelez-nous	-
8	1180260		Blade, Fan		Appelez-nous	-
9	1180310		Motor, Fan		Appelez-nous	-
10	1180248		Bracket, Motor Mount		Appelez-nous	-
11	1180008		Nut, Hex 5mm		Appelez-nous	-
12	1180702		Wheel, Blower		Appelez-nous	-
13	1180330		Cover, Condenser Top		Appelez-nous	-
14	1180408		Grommet, Fan Motor		Appelez-nous	-
15	1180298		Support, Unit		Appelez-nous	-
16	1180962		Insulation, Dividing Wall		Appelez-nous	-
17	1180415		Washer, Bonded		Appelez-nous	-
18	1180963		Insulation (side)		Appelez-nous	-
19	WP854334		Seal (housing/orifice)   (Replaces: 1180679)				$ 13.94
20	1180636		Seal		Appelez-nous	-
21	WP854334		Seal   (Replaces: 1180972)				$ 13.94
23	1180389		Seal		Appelez-nous	-
24	1180259		Seal, Condenser Top Cover		Appelez-nous	-
25	1180465		Door, Exhaust		Appelez-nous	-
26	1180410		Linkage, Exhaust Door		Appelez-nous	-
27	1180411		Retainer, Linkage		Appelez-nous	-
28	1180296		Louver, Verticle (3)		Appelez-nous	-
29	1180180		Crank, Verticle Louver		Appelez-nous	-
30	1180181		Link, Verticle Louver		Appelez-nous	-
31	1161561		Screw 3/8		Appelez-nous	-
31	WP1163283		Screw 1/2   (Replaces: 1163283)				$ 7.55
32	1180400		Cover, Slot		Appelez-nous	-
33	WP854334		Seal (exhaust Door)   (Replaces: 1180413)				$ 13.94
34	WP854334		Seal, Unit   (Replaces: 1181060)				$ 13.94
36	1180637		Seal, Condenser Shroud (bottom)		Appelez-nous	-
37	1157140		Clip, Mounting		Appelez-nous	-
38	1180932		Seal, Louver		Appelez-nous	-
39	1181070		Screw, Ground		Appelez-nous	-
40	1180816		Screw No.8 X 1		Appelez-nous	-
41	489392		Screw No.6   (Replaces: 1180485)				$ 14.02
42	1181015		Seal, Condensate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
