SELECT A DIAGRAM

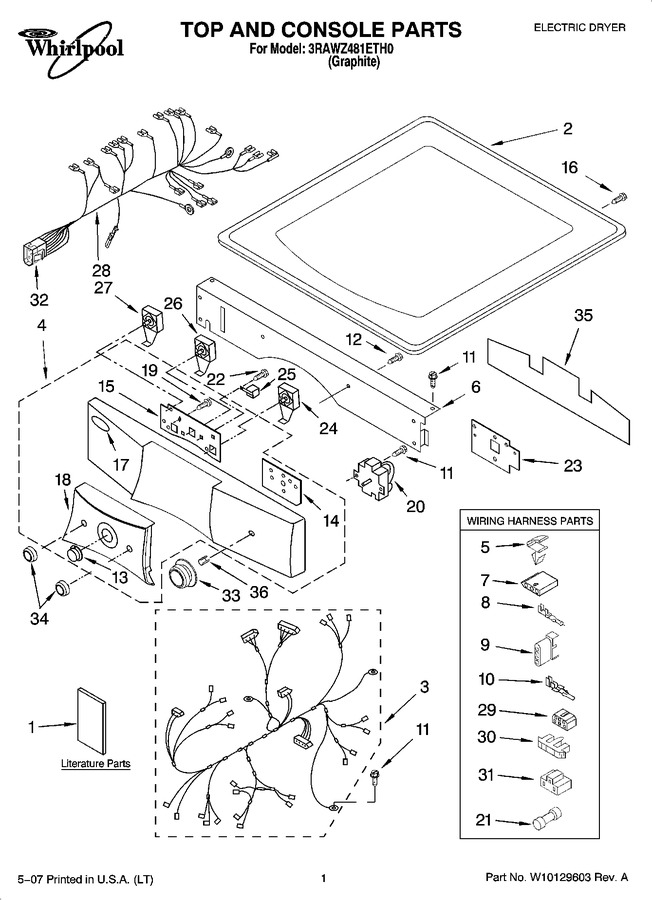

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131548 | Installation & User Guide |
|
- | |||||
| 1 | 8545902 | Label, Wiring Diagram |
|
- | |||||
| 1 | W10127718 | Use & Care Guide |
|
- | |||||
| 1 | 8563878 | Installation Instructions |
|
- | |||||
| 2 | 8519253 | Top |
|
- | |||||
| 3 | W10110980 | Harness, Main |
|
- | |||||
| 4 | W10118949 | Panel, Console (includes Illus. 13, 14 15, 17, 18 & 19) |
|
- | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 6 | W10118067 | Bracket, Console |
|
- | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 19.10 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 7.54 | ||||
| 12 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 10.13 | |||||
| 13 | W10129617 | Button, Push-to-start |
|
- | |||||
| 14 | W10118063 | Bracket, Timer |
|
- | |||||
| 15 | W10118064 | Bracket, Switch Mounting |
|
- | |||||
| 16 | W10080930 | Screw, 8-18 X 1/2 |
|
- | |||||
| 17 | W10117943 | Medallion |
|
- | |||||
| 18 | W10129618 | Console, Center |
|
- | |||||
| 19 | 3400238 | Screw, 2-28 X 1/2 |
|
$ 12.03 | |||||
| 20 | W10116280 | Timer |
|
$ 154.22 | |||||
| 21 | WPW10111181 | Fuse (Replaces: W10111181) |
|
$ 31.33 | |||||
| 22 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 23 | 3980421 | Spacer Plate (timer) |
|
- | |||||
| 24 | W10168170 | Switch, Wrinkle Guard (Replaces: 8316076) |
|
$ 186.01 | |||||
| 25 | 8522378 | Buzzer, Mini |
|
- | |||||
| 26 | WPW10112668 | Switch, Push-to-start (Replaces: W10112668) |
|
$ 115.30 | |||||
| 27 | W10168169 | Switch, Temperature (Replaces: 3399642) |
|
$ 80.20 | |||||
| 28 | W10110978 | Harness, Console |
|
- | |||||
| 29 | 3347243 | Connector 6-circuit |
|
- | |||||
| 30 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 31 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 32 | 692997 | Connector |
|
- | |||||
| 33 | W10129615 | Knob, Timer Assembly |
|
- | |||||
| 34 | W10129614 | Knob, Control (2) |
|
- | |||||
| 35 | 3980339 | Shield, Drip |
|
- | |||||
| 36 | WP688805 | Spring Clip (Replaces: 688805) |
|
Immediately | $ 7.38 |
