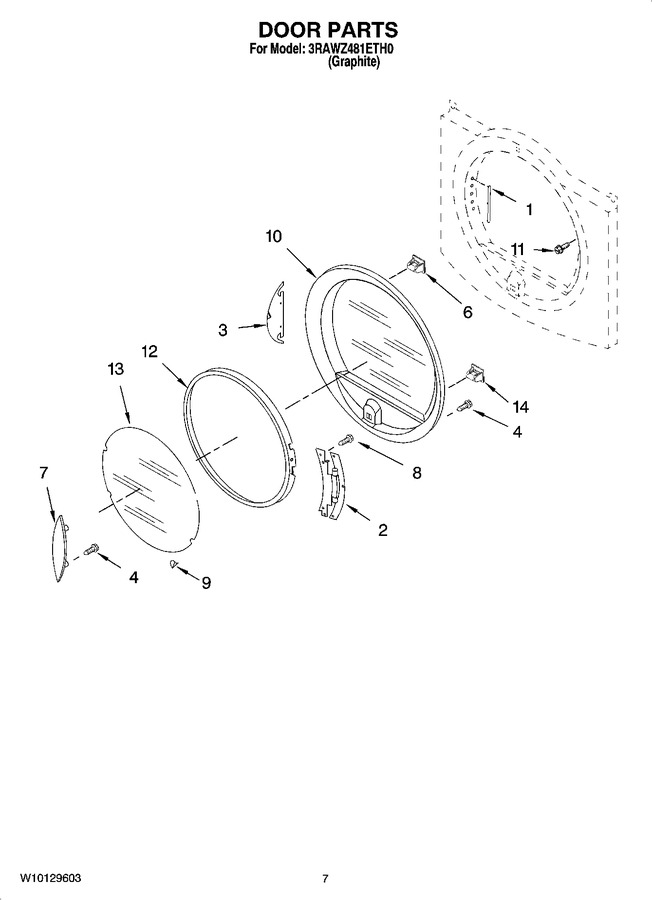

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10085230		Label, Hinge Hole   (Replaces: W10085230)				$ 20.66
2	W10111142		Door Hinge Assembly		Appelez-nous	-
3	8519483		Cover, Door Hinge				$ 31.42
4	W10080840		Screw, 8-18 X 5/8		Appelez-nous	-
6	279570		Door Catch Assembly (bottom)   (Replaces: 690081)			Immediately	$ 8.00
7	WP8559751		Handle, Door   (Replaces: 8559751)			Immediately	$ 44.61
8	W10017850		Screw, 10-24 X 3/64		Appelez-nous	-
9	8519374		Plug, Door Handle (2)				$ 51.41
10	W10118207		Door Assembly (inner) (includes Illus. 6 & 14)		Appelez-nous	-
11	W10080340		Screw, 8-18 X 11/16		Appelez-nous	-
12	8519327		Door, Outer				$ 146.79
13	8545878		Window				$ 93.91
14	WP3389441		Door Catch Assembly (top)   (Replaces: 3389441)			Immediately	$ 6.56
	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 26.65
	8529894		Kit, Hold Down		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
