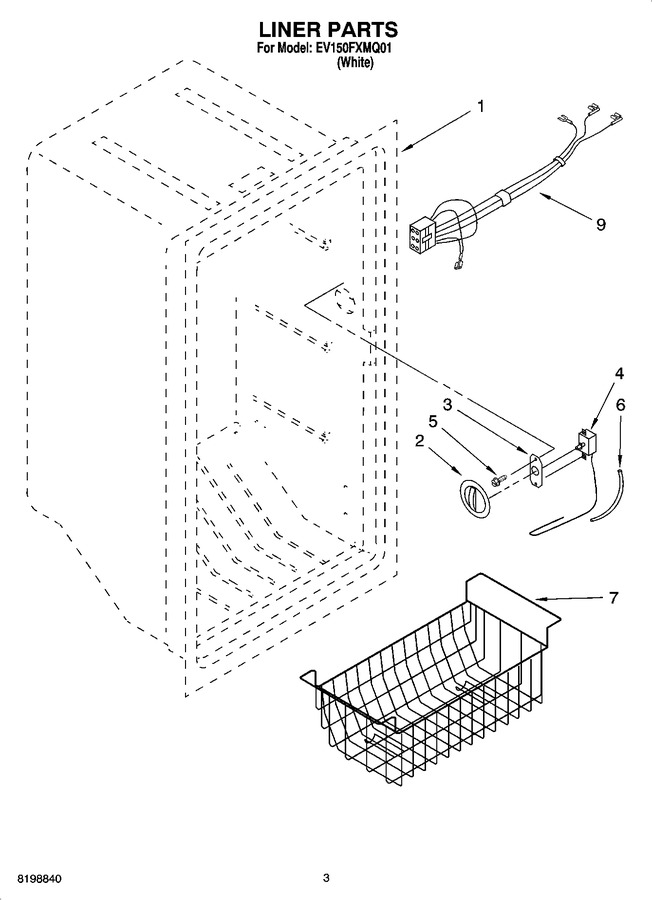

02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4390619 | Control Knob |
|
- | |||||
| 3 | 1-81154 | Control Plate (Replaces: 4357041) |
|
$ 13.50 | |||||
| 4 | 4390620 | Thermostat |
|
- | |||||
| 5 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.84 | |||||
| 6 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.52 | |||||
| 7 | 4390621 | Basket, Wire |
|
- | |||||
| 9 | 4390907 | Harness, Warning Light |
|
- |
