SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

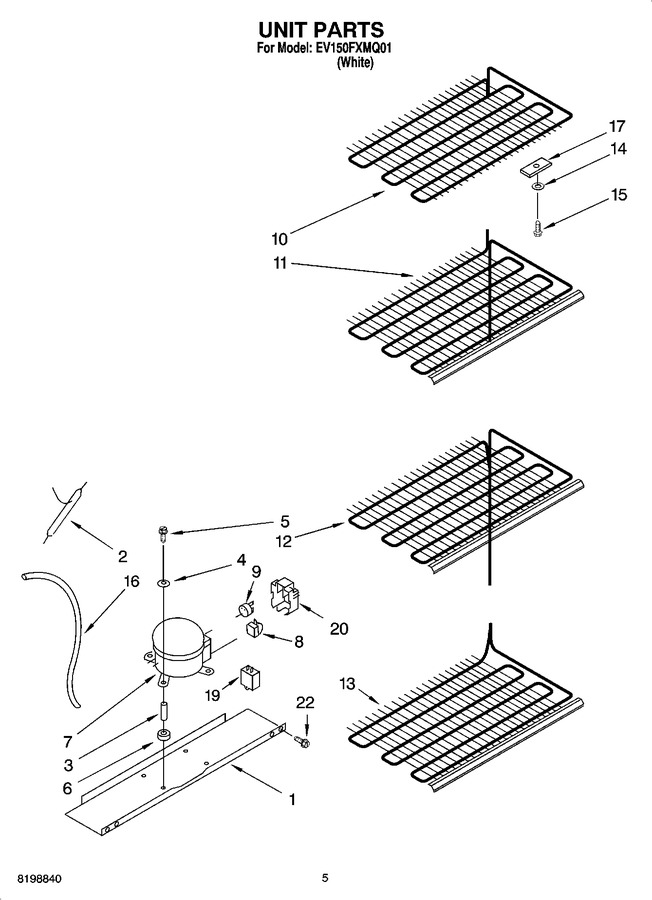

03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357087		Compressor Mounting Pan		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	4356846		Compressor Grommet Sleeve				$ 13.50
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356335		Compressor Grommet		Appelez-nous	-
7	W10309989		Compressor (includes Items 6, 8 & 9)   (Replaces: 4390879)			Immediately	$ 620.83
8	4356738		Relay				$ 53.17
9	4390880		Overload				$ 217.45
10	4390875		Evaporator Top		Appelez-nous	-
11	4390876		Evaporator Shelf		Appelez-nous	-
12	4390690		Evaporator Shelf		Appelez-nous	-
13	4390878		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357223)				$ 8.23
16	4390881		Heat Exchanger		Appelez-nous	-
17	4356854		Clamp		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357094)			Immediately	$ 52.97
20	4390882		Cover		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.50
