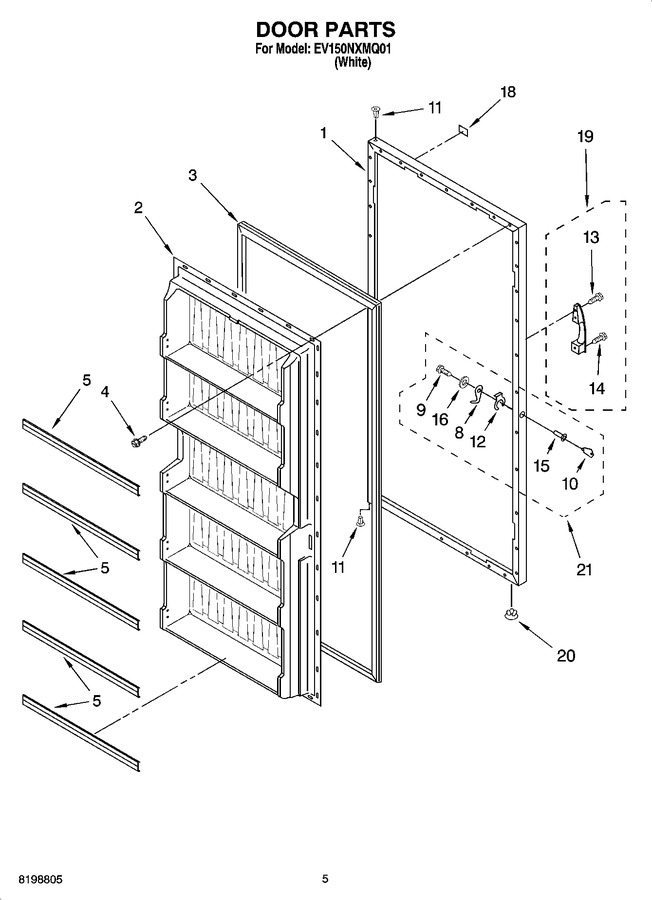

03 - Door Parts
04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390889 | Exterior Door (white (includes Insulation)) |
|
- | |||||
| 2 | WP4390870 | Interior Panel (Replaces: 4390891) |
|
$ 250.88 | |||||
| 3 | WP4357099 | Gasket (white) (Replaces: 4357099) |
|
$ 304.99 | |||||
| 4 | 4390598 | Screw (Replaces: 4357290) |
|
$ 19.84 | |||||
| 5 | 4390892 | Trim Shelf |
|
- | |||||
| 8 | 4357289 | Lock, Bolt |
|
$ 22.23 | |||||
| 9 | WP489478 | Screw, Lock (Replaces: 4356843) |
|
$ 7.36 | |||||
| 10 | WP4356840 | Key (Replaces: 4356840) |
|
$ 10.15 | |||||
| 11 | 4390731 | Bushing |
|
$ 19.69 | |||||
| 12 | 4356842 | Spring, Clip Mounting |
|
$ 12.24 | |||||
| 13 | W10709795 | Screw (Replaces: 4390511) |
|
$ 12.41 | |||||
| 14 | WP3-24004-109 | Screw (Replaces: 4390510) |
|
$ 8.23 | |||||
| 15 | 4357145 | Lock, Body (Replaces: 4356839) |
|
$ 25.01 | |||||
| 16 | 4356992 | Washer, Lock |
|
- | |||||
| 18 | 4390656 | Nameplate (white) |
|
- | |||||
| 19 | 4390890 | Handle Kit (white) |
|
- | |||||
| 20 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 21 | 4357145 | Lock Assembly (includes Items: 8,9,10,12,15) |
|
$ 25.01 |
