SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts

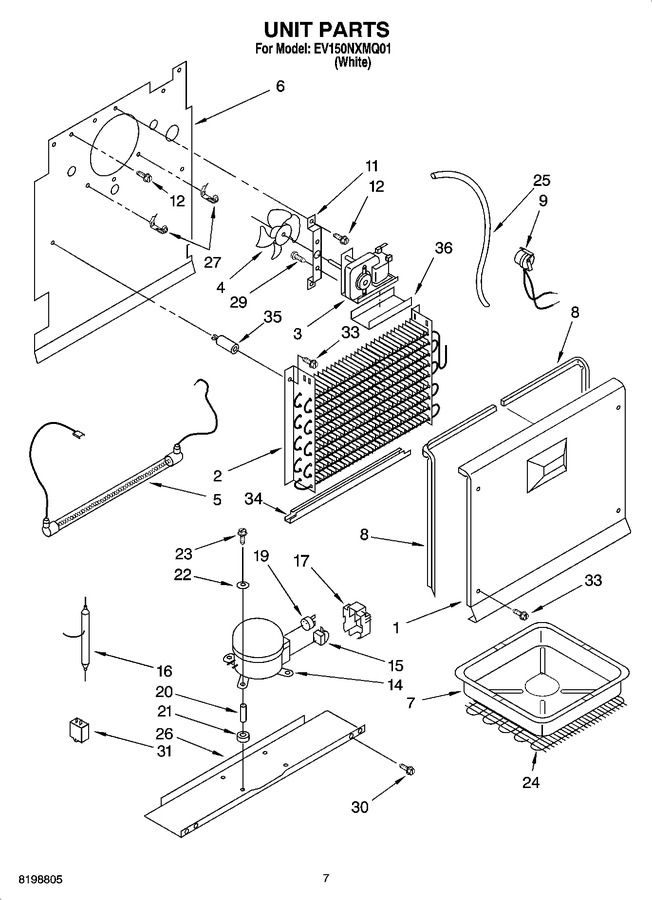

04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 404.47
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 9.50
5	W11175809		Heater Defrost   (Replaces: 4356923)			Immediately	$ 165.70
6	4357123		Plate, Evaporator Mount		Appelez-nous	-
7	4390675		Drain Pan				$ 129.57
8	4390663		Gasket, Evaporator Cover (right)				$ 225.86
8	4390664		Gasket, Evaporator Cover (left)				$ 84.21
9	4356928		Bi-metal Defrost		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357256)				$ 88.81
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 59.77
14	W10309990		Compressor   (Replaces: 4390894)			Immediately	$ 583.62
15	4356738		Relay				$ 53.17
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
17	4356777		Cover		Appelez-nous	-
19	WP2149959		Overload   (Replaces: 4390896)				$ 126.05
20	4356846		Sleeve				$ 13.50
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4356852		Screw, Compressor				$ 6.57
24	4390660		Condenser		Appelez-nous	-
25	4357263		Exchanger, Heat				$ 123.66
26	4357257		Compressor Pan		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
29	WP3400094		Screw   (Replaces: 4356970)				$ 8.33
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.50
31	3-35956-013		Capacitor   (Replaces: 4390674)				$ 109.01
33	WP3-24004-109		Screw   (Replaces: 4357110)				$ 8.23
34	4357254		Shield, Heater		Appelez-nous	-
35	4357020		Grommet		Appelez-nous	-
36	4357128		Shield, Motor   (Replaces: 4357255)				$ 102.79
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 164.39
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	N/A		Miscellaneous		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78

    View Diagram in Separate Window       Print Part List
