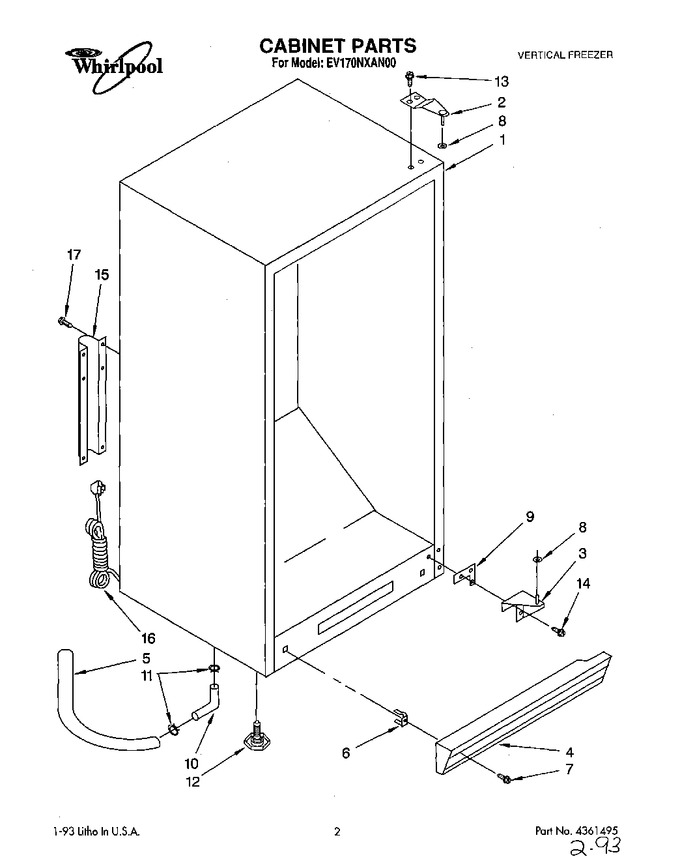

SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356915		Top, Hinge Almond		Appelez-nous	-
3	4356916		Bottom, Hinge Almond		Appelez-nous	-
4	4356903		Grille (black)		Appelez-nous	-
5	4356937		Drain Hose		Appelez-nous	-
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.35
7	WP489478		Screw   (Replaces: 4356805)				$ 7.36
8	W10851331		Washer (3)   (Replaces: 4356801)				$ 9.51
9	4356828		Shim, Bottom				$ 12.40
10	4356825		Tube, Drain		Appelez-nous	-
11	4356827		Clamp Hose		Appelez-nous	-
12	W11117769		Leg, Leveler   (Replaces: 4356869)			Immediately	$ 17.43
13	WP489478		Screw   (Replaces: 4356810)				$ 7.36
14	WP8204624		Screw   (Replaces: 4356830)				$ 15.73
15	4356947		Cover, Suction Line		Appelez-nous	-
16	4356986		Power Cord		Appelez-nous	-
17	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 164.39
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
17	WP4-81049-001		Screw   (Replaces: 4356971)				$ 344.30
17	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
17	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
17	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
17	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
17	515393		Transformer (115-230 Volt)		Appelez-nous	-
17	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
17	350956		Enamel, Almond (13 Oz. Spray Can)				$ 48.61
17	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
	LIT4361495		Parts List		Appelez-nous	-
	LIT4356948		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
