SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit

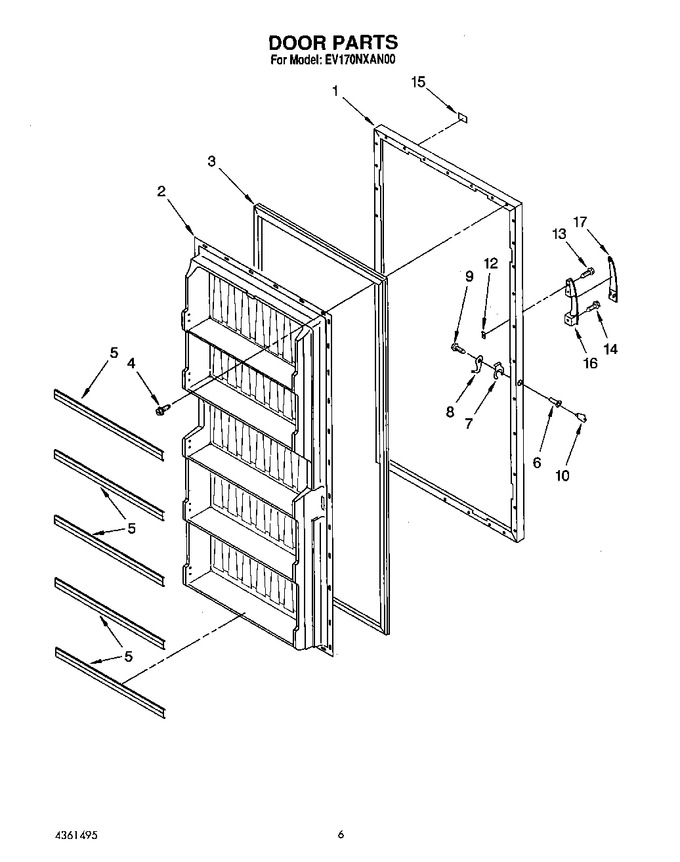

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357003		Exterior Door Almond (includes Insulation)		Appelez-nous	-
2	4356930		Interior Panel		Appelez-nous	-
3	4357005		Gasket (brown)		Appelez-nous	-
4	WP489478		Screw   (Replaces: 4356810)				$ 7.36
5	4356932		Trim Shelf		Appelez-nous	-
6	4357145		Lock, Body   (Replaces: 4356839)				$ 25.01
7	4356842		Spring, Clip Mounting				$ 12.24
8	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 25.64
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 7.36
10	WP4356840		Key   (Replaces: 4356840)				$ 10.15
11	876370		Fiberglass Insulation				$ 218.83
12	4356812		Anchor, Screw		Appelez-nous	-
13	302717		Screw		Appelez-nous	-
14	488839		Screw		Appelez-nous	-
15	4356940		Nameplate		Appelez-nous	-
16	4356895		Handle		Appelez-nous	-
17	4356896		Insert, Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
