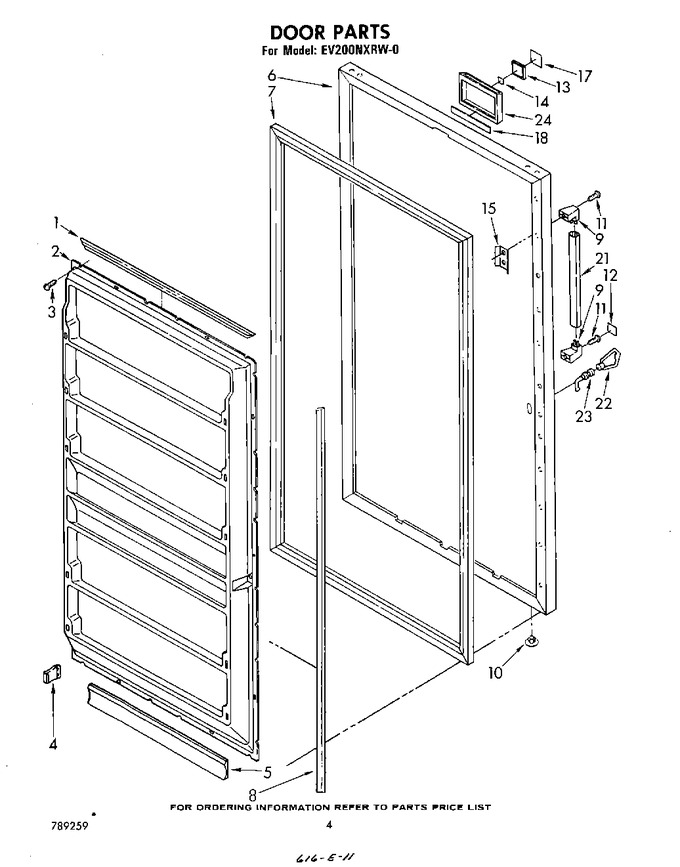

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836118		Retainer, Gasket (2) (top & Bottom)		Appelez-nous	-
2	942677		Panel		Appelez-nous	-
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
3	WP489069		Screw, 7 X 1/2 A   (Replaces: 489101)			Immediately	$ 8.40
4	WP849996		Retainer, Trim (10)   (Replaces: 943824)				$ 7.95
5	1104084		Trim, Shelf (5)		Appelez-nous	-
6	942623		Door, Exterior (almond)		Appelez-nous	-
6	942619		Door, Exterior (white)		Appelez-nous	-
7	2188438A		Gasket, Magnetic   (Replaces: 942678)		Appelez-nous	-
8	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
9	946737		End, Handle		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
11	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
12	946742		Cover, Handle End		Appelez-nous	-
13	945116		Nameplate (includes Items 14 & 17)		Appelez-nous	-
14	991259		Tape Strip		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
17	945108		Insert, Nameplate		Appelez-nous	-
18	1104031		Tape Strip (3/4 Wide)		Appelez-nous	-
18	1104030		Tape Strip (1/2 Wide)		Appelez-nous	-
21	1104041		Handle, Center		Appelez-nous	-
22	941380		Key		Appelez-nous	-
23	941379		Lock		Appelez-nous	-
24	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
24	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	1104054		Container		Appelez-nous	-
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
24	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
24	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 96.42
24	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
24	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
24	511881		Lacquer, Bright Aluminum (12 Oz. Spray Can)				$ 309.28
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
24	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
24	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
24	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
24	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
24	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
24	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT1104044		Inventory Packet Assembly		Appelez-nous	-
	LIT1104037		Energy Label		Appelez-nous	-
	LIT1101097		Service & Wiring Sheet		Appelez-nous	-
	LIT1104035		Use & Care Guide		Appelez-nous	-
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 94.14
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)				$ 59.89
	350930		Xenamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 40.12
	LIT789218		List, Parts		Appelez-nous	-
	261890		Xenamel, New Gold (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	LIT656493		How To Freeze Booklet		Appelez-nous	-
