SELECT A DIAGRAM

02 - Cabinet


03 - Door , Lit/optional

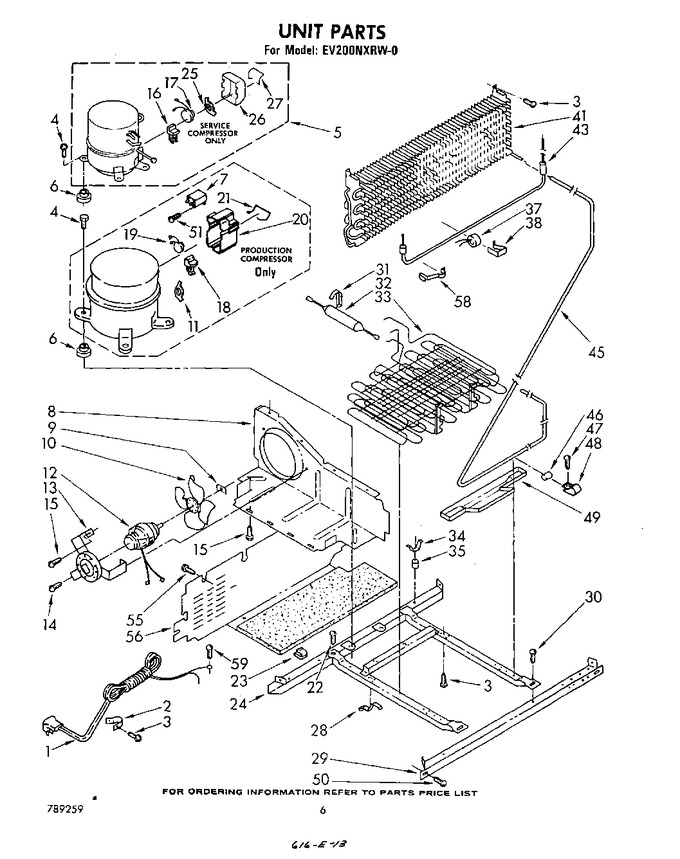

04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 12.65
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
4	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.01
5	482614		Compressor		Appelez-nous	-
6	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
7	WPW10662129		Capacitor   (Replaces: 1100804)			Immediately	$ 52.97
8	850764		Baffle		Appelez-nous	-
9	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.59
10	989524		Blade, Fan		Appelez-nous	-
11	943320		Spring, Overload (used W/original Compressor)		Appelez-nous	-
12	833697		Motor (morrill)   (Replaces: 945583)			Immediately	$ 98.23
13	548695		Bracket, Fan Motor		Appelez-nous	-
14	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	989509		Relay (used W/ Service Compressor)		Appelez-nous	-
17	753526		Overload (used W/service Compressor)		Appelez-nous	-
18	1101014		Relay (used W/original Compressor)		Appelez-nous	-
19	1101039		Overload (used W/original Compressor)		Appelez-nous	-
20	1105055		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
21	943322		Spring (used W/original Compressor)		Appelez-nous	-
22	303776		Screw, 8-32 X 5/16 (ground)   (Replaces: 488879)		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	945457		Frame		Appelez-nous	-
25	549086		Spring, Overload (used W/service Compressor)		Appelez-nous	-
26	549505		Cover (used W/ Service Compressor)		Appelez-nous	-
27	549342		Strap, Cover (used W/service Compressor)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	941697		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 51.42
33	943480		Condenser		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	943447		Grommet (4)		Appelez-nous	-
37	WP4387489		Defrost, Bimetal   (Replaces: 989624)				$ 98.09
38	513584		Clamp		Appelez-nous	-
41	1105084		Evaporator		Appelez-nous	-
43	989698		Heater, Defrost		Appelez-nous	-
45	1100838		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 20.00
48	510716		Clamp, Tube (2)		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	W11693756		Screw, 8 X 5/8a   (Replaces: 488687)			Immediately	$ 13.28
55	WPW10141645		Screw, 8 X 1/2a (1)   (Replaces: 489084)				$ 7.25
56	850457		Cover		Appelez-nous	-
58	548459		Clip, Heater		Appelez-nous	-
59	876764		Valve, Access(3/16``)			Immediately	$ 86.33
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 123.53
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
59	488474		Screw, 8-32 X 3/8		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 121.04
