| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67005889 |
|
Pan, Base |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
67006661 |
|
Shroud, Condenser |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
67005104 |
|
Motor, Condenser Fan |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
67003354 |
|
Bracket, Condenser Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
61004743 |
|
Grommet, Bracket |
10 |
|
|
$ 5.51 |
|
|
| 6 |
WP12587601 |
 |
Blade, Cond Fan (Replaces: 12587601) |
10 |
|
|
$ 133.00 |
|
|
| 7 |
M0223816 |
|
Screw, Tr |
10 |
|
|
$ 5.27 |
|
|
| 8 |
W10309997 |
 |
Compressor Kit (Replaces: 12002861) |
10 |
|
|
$ 583.93 |
|
|
| 9 |
12846902 |
|
Screw, Shoulder (Replaces: 67006432) |
10 |
|
|
$ 13.64 |
|
|
| 10 |
67006660 |
|
Overload/relay Capacitor Assy |
10 |
Appelez-nous
|
- |
|
|
|
| 11 |
WP2201147 |
|
Capacitor (Replaces: 67007162) |
10 |
|
|
$ 135.42 |
|
|
| 12 |
67007052 |
|
Clip, Capacitor |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
67007176 |
|
Pan, Drain |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
67005680 |
 |
Grommet, Condenser |
10 |
|
|
$ 22.10 |
|
|
| 15 |
WP12866903 |
 |
Tube, Discharge (Replaces: 67004700) |
10 |
|
Immediately |
$ 140.21 |
|
|
| 16 |
67006425 |
 |
Screw, Sm |
10 |
|
Immediately |
$ 7.30 |
|
|
| 17 |
12992301 |
|
Screw (Replaces: 67006433) |
10 |
|
|
$ 7.32 |
|
|
| 18 |
WP854334 |
 |
Seal (Replaces: 61003210) |
10 |
|
|
$ 13.94 |
|
|
| 19 |
WP67006131 |
 |
Condenser (Replaces: 67006131) |
10 |
|
|
$ 385.08 |
|
|
| 20 |
WPW10169124 |
|
Grommet, Compressor (Replaces: 67003493) |
10 |
|
|
$ 7.55 |
|
|
| 21 |
67005062 |
|
Filter, Line |
10 |
Appelez-nous
|
- |
|
|
|
| 22 |
67007163 |
|
Harness, Mc |
10 |
Appelez-nous
|
- |
|
|
|

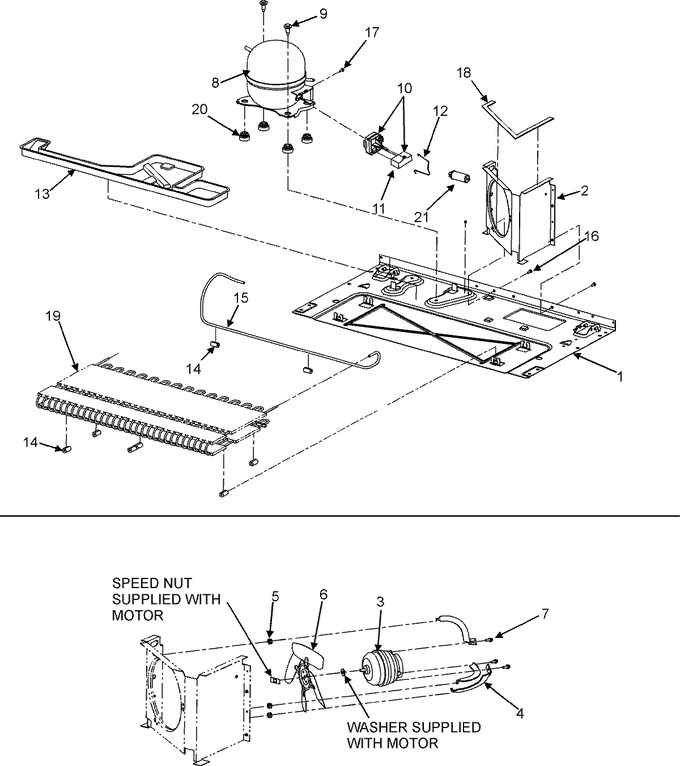

View Diagram in Separate Window
Print Part List
