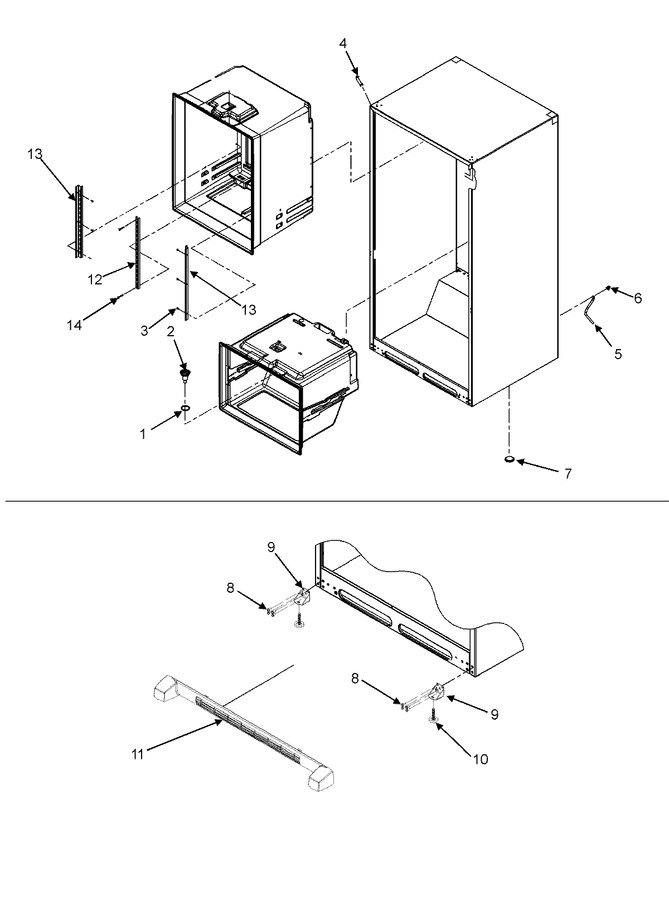

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.78
1	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 11.47
2	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 51.50
3	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 7.30
4	67003485		Cover, Corner (blk)	10		Immediately	$ 22.14
5	67001066		Tube, Drain	10			$ 55.82
6	67001067		Clip, Drain Tube	10			$ 9.66
7	A3076901		Plug-button	10			$ 5.70
8	67006491		Screw	10			$ 7.47
9	12906303WD		Bracket, Foot Cabinet   (Replaces: 67007174)	10			$ 88.58
10	W11177593		Brake, Foot   (Replaces: 67003868)	10			$ 12.18
11	WPW10534153		Grille, Toe (blk)   (Replaces: 67006375)	10			$ 154.57
11	12627302		Clip, Toe Grille	10			$ 5.84
12	67001073		Ladder, Center	10			$ 56.89
13	67002489		Ladder, L/r Side	10			$ 71.09
14	W10709795		Screw   (Replaces: 67006360)	10			$ 13.79
