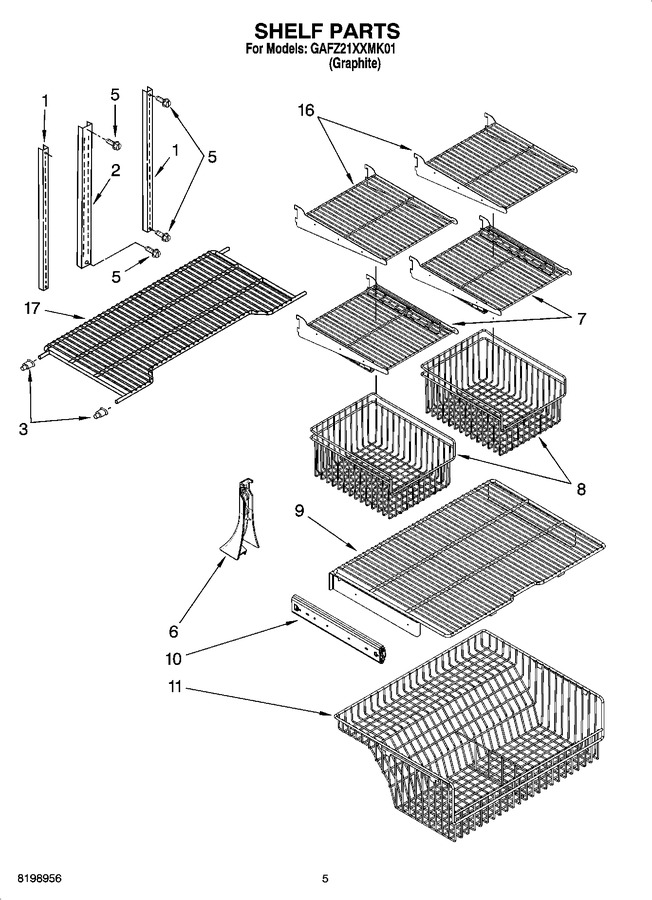

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2202821 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | 2253149 | Support, Shelf |
|
- | |||||
| 7 | 2253164 | Frame Assembly, Wire Shelf (2) |
|
- | |||||
| 8 | 2253003 | Basket, Wire (2) |
|
- | |||||
| 9 | 2253111 | Cover, Basket |
|
- | |||||
| 10 | 2253107 | Slide, Basket |
|
- | |||||
| 11 | 2253115 | Basket, Lower Cover |
|
- | |||||
| 16 | 2253065 | Shelf Assembly |
|
- | |||||
| 17 | 2253008 | Shelf, Freezer |
|
- |
