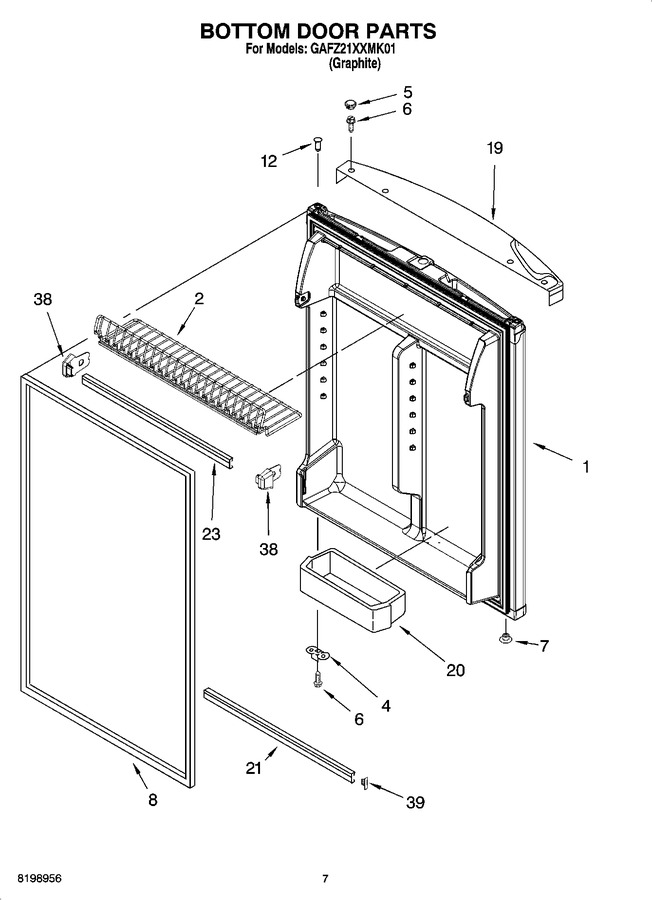

04 - Bottom Door Parts
05 - Unit Parts
06 - Top Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2253082 | Bottom Door (includes 8 & 12) (graphite) |
|
- | |||||
| 2 | 2253005 | Shelf, Wire Door |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | 2204839 | Hole Plug, Endcap (graphite) |
|
- | |||||
| 6 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 7 | WP2212651 | Hole Plug, Hinge-sleeve (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 8 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 19 | 2253075 | Handle (graphite) |
|
- | |||||
| 20 | WP2204813 | Bin, Door (4) (Replaces: 2204813) |
|
Immediately | $ 73.08 | ||||
| 21 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 103.27 | |||||
| 23 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 |
