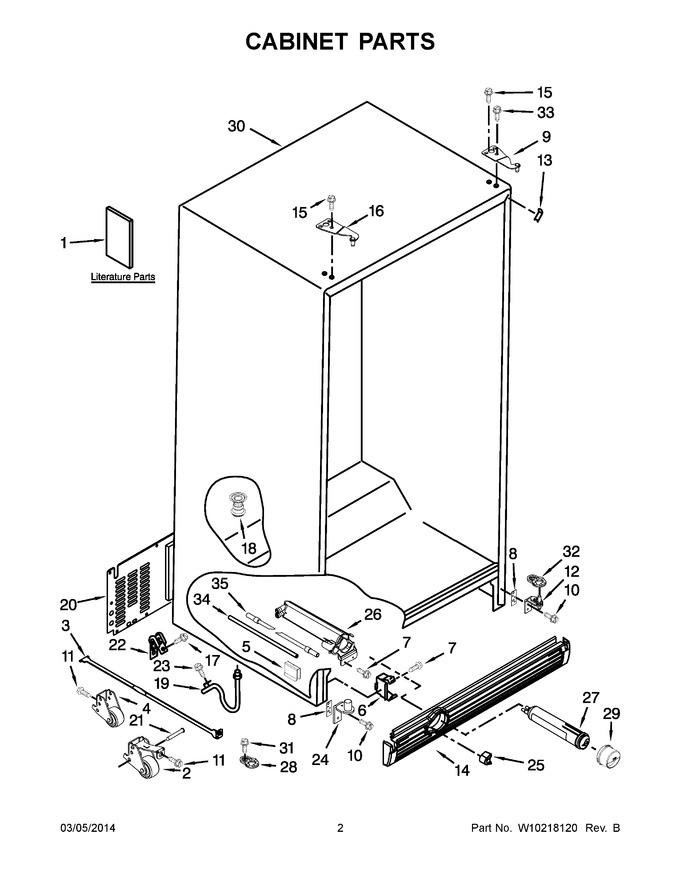

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2223996 | Installation Instructions |
|
- | |||||
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10203129 | Service And Wiring Sheet Energy Guide |
|
- | |||||
| 1 | W10189344 | Use And Care Guide |
|
- | |||||
| 2 | 2306951 | Assembly, Front Roller (right Hand) |
|
- | |||||
| 2 | 2306950 | Assembly, Front Roller (left Hand) |
|
- | |||||
| 3 | 2223263 | Strap, Roller |
|
- | |||||
| 4 | 2306949 | Roller, Rear |
|
- | |||||
| 5 | W11545866 | Clip, Axle Retainer (Replaces: 2223388) |
|
$ 11.88 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | 2223545 | Shim |
|
$ 84.03 | |||||
| 9 | 2307008AP | Hinge, Top (refrigerator Compartment) (white) (Replaces: 2307008W) |
|
$ 167.60 | |||||
| 9 | 2307008T | Hinge, Top (refrigerator Compartment) (biscuit) |
|
- | |||||
| 9 | 2307008B | Hinge, Top (refrigerator Compartment) (black) |
|
$ 47.55 | |||||
| 9 | 2307008AP | Hinge, Top (refrigerator Compartment) (grey) |
|
$ 167.60 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | 3400243 | Screw |
|
$ 12.03 | |||||
| 12 | 2307179 | Hinge, Bottom Right |
|
$ 50.88 | |||||
| 13 | 2223893B | Filler, Wrapper (black) |
|
- | |||||
| 13 | 2223893W | Filler, Wrapper (white) |
|
- | |||||
| 13 | 2223893AP | Filler, Wrapper (grey) |
|
- | |||||
| 13 | 2223893T | Filler, Wrapper (biscuit) |
|
- | |||||
| 14 | W10194061 | Grille (grey) |
|
$ 46.07 | |||||
| 14 | W10194047 | Grille (white) |
|
- | |||||
| 14 | W10194057 | Grille (black) |
|
- | |||||
| 14 | W10194058 | Grille (biscuit) |
|
$ 159.53 | |||||
| 15 | 3400108 | Screw |
|
$ 12.07 | |||||
| 16 | 2307007AP | Hinge, Top (freezer Compartment) (white) (Replaces: 2307007W) |
|
$ 165.93 | |||||
| 16 | 2307007T | Hinge, Top (freezer Compartment) (biscuit) |
|
- | |||||
| 16 | 2307007AP | Hinge, Top (freezer Compartment) (grey) |
|
$ 165.93 | |||||
| 16 | 2307007B | Hinge, Top (freezer Compartment) (black) |
|
$ 140.08 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | 2254566 | Extension, Drain Fitting |
|
$ 53.99 | |||||
| 20 | 2223409 | Cover, Unit |
|
$ 77.44 | |||||
| 21 | 2223387 | Pin, Roller |
|
- | |||||
| 22 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 23 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 24 | 2307152 | Hinge, Bottom Left |
|
$ 36.02 | |||||
| 25 | WP2260503B | Button, Water Filter (biscuit) (Replaces: 2260503T) |
|
$ 76.42 | |||||
| 25 | 2260503W | Button, Water Filter (white) |
|
Immediately | $ 35.87 | ||||
| 25 | 2260503MG | Button, Water Filter (grey) |
|
$ 28.36 | |||||
| 25 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 26 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 270.85 | ||||
| 27 | EDR3RXD1B | Filter, Water (Replaces: 8212650) |
|
Immediately | $ 49.99 | ||||
| 28 | 2307051 | Closer, Door (freezer) |
|
$ 73.51 | |||||
| 29 | 2260502T | Cap, Water Filter (biscuit) |
|
- | |||||
| 29 | WP2260518MG | Cap, Water Filter (grey) (Replaces: 2260502MG) |
|
$ 58.83 | |||||
| 29 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260502B) |
|
Immediately | $ 33.95 | ||||
| 29 | WP2260518W | Cap, Water Filter (white) (Replaces: 2260502W) |
|
Immediately | $ 34.67 | ||||
| 30 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 31 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 32 | 2307049 | Closer, Door (refrigerator) |
|
$ 5.84 | |||||
| 33 | 3400858 | Screw |
|
- | |||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: 2224020) |
|
$ 121.32 | |||||
| 35 | 8201597 | Tube, Filter Inlet (Replaces: 2319867) |
|
Immediately | $ 83.70 |
