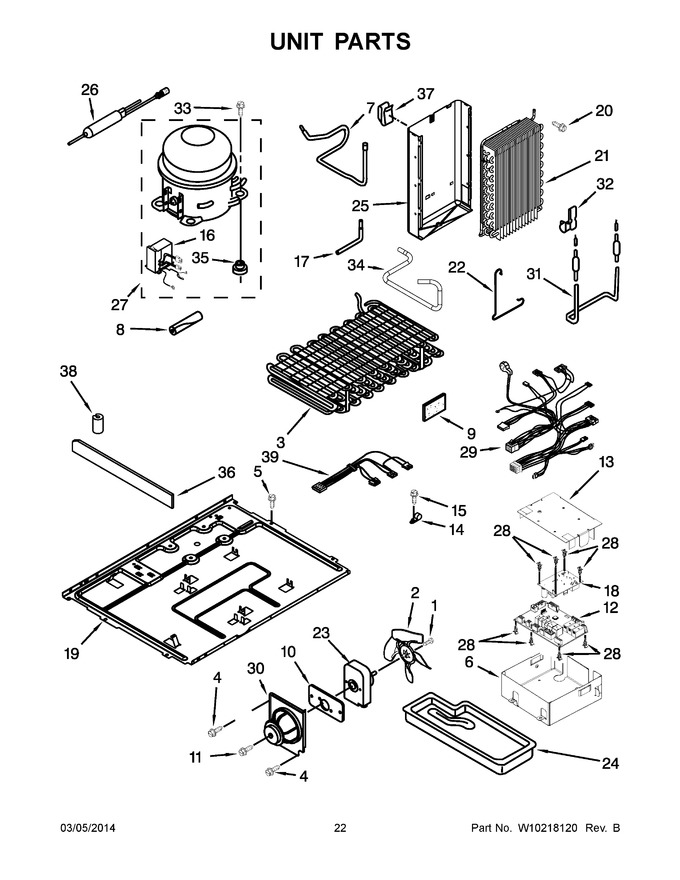

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488234		Screw   (Replaces: 777070)				$ 6.37
2	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
3	W10131059		Assembly, Condenser		Appelez-nous	-
4	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 10.45
5	3400524		Screw (white)				$ 11.95
6	2224844		Housing, Control Board		Appelez-nous	-
7	W10528579		Tube Suction   (Replaces: 2223351)				$ 247.78
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 13.29
10	W10165989		Plate, Mounting		Appelez-nous	-
11	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
12	WPW10356040		Control, Electronic   (Replaces: W10120824)			Immediately	$ 290.54
13	W10180645		Cover, Control Box		Appelez-nous	-
14	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 7.33
15	WPW10141625		Screw   (Replaces: 488649)				$ 20.00
16	W10893917		Assembly, Inverter Box   (Replaces: W10186719)				$ 423.71
17	2325479		Tube, Process		Appelez-nous	-
18	WPW10209635		Control, Electronic   (Replaces: W10209635)				$ 316.45
19	2306932		Baseplate				$ 158.02
20	WP489478		Screw   (Replaces: 489478)				$ 7.36
21	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
22	2161324		Clip, Defrost Heater		Appelez-nous	-
23	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
24	2223398		Tray, Evaporator		Appelez-nous	-
25	2224022		Shield, Heat		Appelez-nous	-
26	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
27	8201675		Compressor   (Replaces: W10186723)			Immediately	$ 545.31
28	2223800		Spacer, Circuit Board				$ 17.50
29	W10129751		Harness, Main Control				$ 170.68
30	2224024		Bracket, Fan Mounting				$ 56.36
31	2323199		Heater, Defrost				$ 127.42
32	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.01
34	W10181542		Tube, Discharge		Appelez-nous	-
35	WP4387558		Grommet   (Replaces: 4387558)				$ 6.57
36	2223394		Extension, Air Baffle		Appelez-nous	-
37	2155547		Clip, Heat Shield		Appelez-nous	-
38	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
39	2187737		Assembly, Unit Wire				$ 148.36
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (6.00 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
