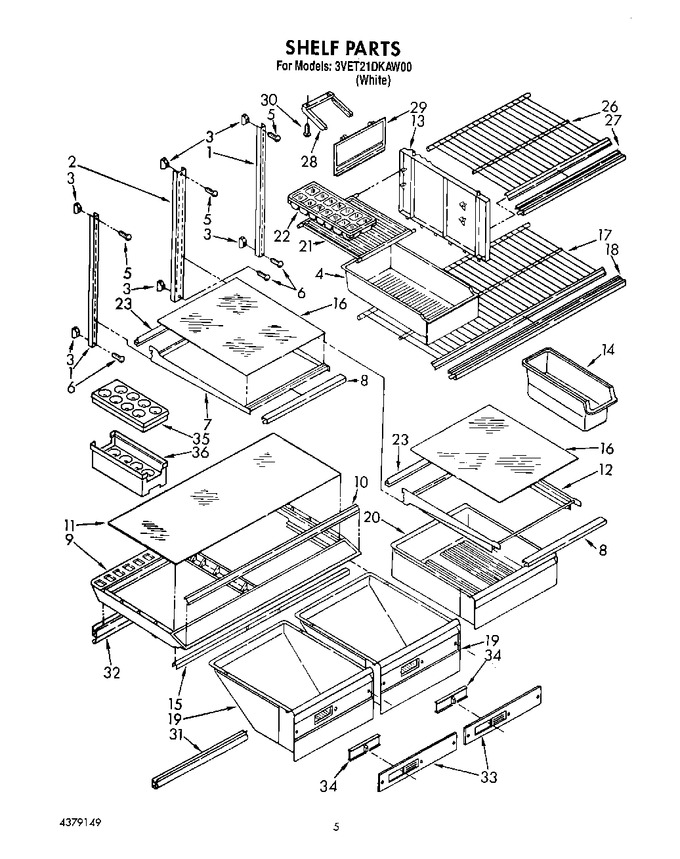

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	W11625904		Pan, Utility   (Replaces: 2148742)				$ 67.83
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	1120435		Shelf, Cantilever		Appelez-nous	-
8	2148526		Trim, Shelf		Appelez-nous	-
9	2166512		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	1122729		Pan Shelf, Cantilever		Appelez-nous	-
13	1127416		Divider		Appelez-nous	-
14	WP982704		Container   (Replaces: 1127196)				$ 32.55
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1124551		Glass, Shelf		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2148535		Trim, Shelf Front		Appelez-nous	-
19	2148522		Pan, Crisper		Appelez-nous	-
20	2148530		Pan, Meat		Appelez-nous	-
21	1106624		Shelf, Ice Compartment		Appelez-nous	-
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
23	1106768		Retainer, Glass		Appelez-nous	-
26	1106822		Shelf, Top		Appelez-nous	-
27	2148537		Trim, Shelf		Appelez-nous	-
28	1106817		Slide, Ice Door		Appelez-nous	-
29	2148741		Door, Ice		Appelez-nous	-
30	WP489478		Screw   (Replaces: 489242)				$ 8.18
31	1116512		Gasket, Front (2)		Appelez-nous	-
32	1105653		Gasket, Rear (2)		Appelez-nous	-
33	2148816		Crisper Front		Appelez-nous	-
34	2148524		Crisper, Slide		Appelez-nous	-
35	1107388		Egg Container, Top		Appelez-nous	-
36	1107384		Egg Container, Bottom		Appelez-nous	-
