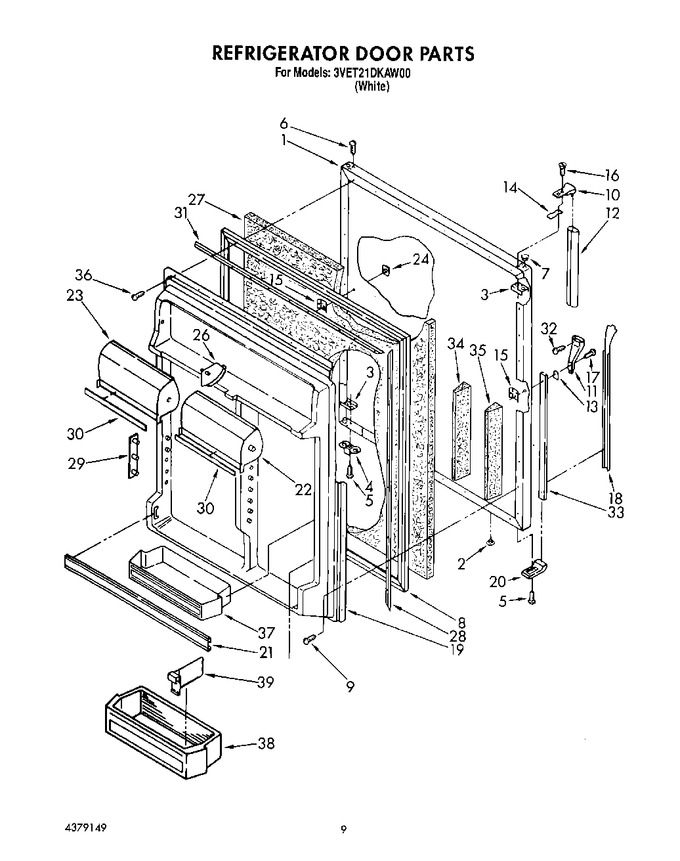

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122549		Panel, Refrigerator Door (white (also Order Item 27))		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
8	2188450A		Door Gasket, Magnetic   (Replaces: 2148565)				$ 255.68
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.25
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.09
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.18
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
18	2150153		Handle Insert		Appelez-nous	-
19	1126757		Interior Door Panel		Appelez-nous	-
20	1105804		End Cap, Bottom		Appelez-nous	-
21	2148551		Trim, Door		Appelez-nous	-
22	2165249		Compartment Door (r.s.)		Appelez-nous	-
23	2165248		Compartment Door (l.s.)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
26	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 7.25
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1122551		Retainer, Gasket		Appelez-nous	-
29	1116986		Pin Plate (8)				$ 12.10
30	1122750		Trim, Compartment Door		Appelez-nous	-
31	1122552		Retainer, Gasket		Appelez-nous	-
32	489022		Screw		Appelez-nous	-
33	935871		Retainer, Insert		Appelez-nous	-
34	1122711		Door Dike Middle		Appelez-nous	-
35	1122709		Door Dike, Side (2)		Appelez-nous	-
36	WP488729		Screw Corner   (Replaces: 489287)			Immediately	$ 7.45
37	2148549		Bin Door Narrow (2)		Appelez-nous	-
38	2148550		Bin Door Deep (2)		Appelez-nous	-
39	2152335		Bin Divider (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
