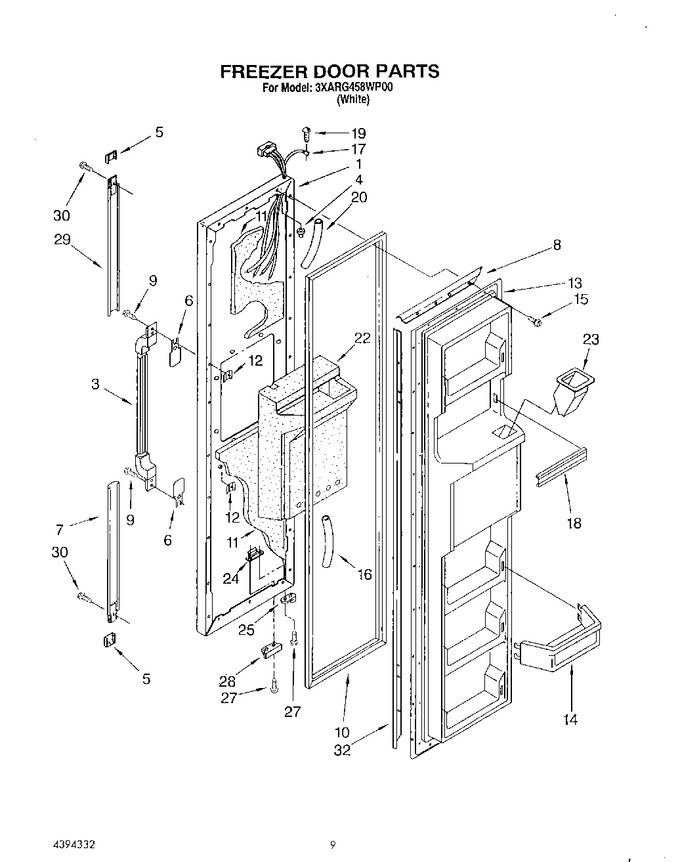

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115235		Freezer, Door Panel (also Order Item 11)		Appelez-nous	-
2	WP488787		Screw   (Replaces: 488886)				$ 11.26
3	2189786		Handle		Appelez-nous	-
4	939886		Cap, Hinge Sleeve		Appelez-nous	-
5	2174006		End Cap		Appelez-nous	-
6	2179399		Shim		Appelez-nous	-
7	2174282		Extension, Bottom		Appelez-nous	-
8	1117767		Retainer, Gasket		Appelez-nous	-
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (3)   (Replaces: 939101)				$ 7.88
13	1125649		Panel, Interior Door		Appelez-nous	-
14	2189738		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	2147080		Tube, Water Line		Appelez-nous	-
17	2179916		Harness, Door		Appelez-nous	-
18	WP2201061		Trim, Door Shelf   (Replaces: 2177884)				$ 124.32
19	WP488234		Screw   (Replaces: 489422)				$ 7.08
20	1119059		Tube, Door Wiring		Appelez-nous	-
22	1115206		Insulation, Dispenser		Appelez-nous	-
23	987188		Chute, Ice		Appelez-nous	-
24	2155335		Tap, Plate		Appelez-nous	-
25	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
27	WP999367		Screw   (Replaces: 489367)				$ 8.56
28	2155332		Bracket, Door Stop		Appelez-nous	-
29	2174276		Extension, Top		Appelez-nous	-
30	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
32	1117766		Retainer, Gasket				$ 36.55
