Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2170314 Heater, Dispenser Appelez-nous -
2 987048 Grommet Appelez-nous -
3 2166858 Shroud, Bracket Appelez-nous -
4 1124715 Housing, Dispenser Appelez-nous -
5 W11693756 Screw   (Replaces: 488687) In-Stock Immediately $ 14.76

7 2175226 Guard, Switch Appelez-nous -
8 2175227 Guard, Switch Appelez-nous -
9 2147168 Door, Ice Special Order $ 33.13

10 2147167 Door Mechanism Assembly Special Order $ 64.67

11 547217 Wire Connector Appelez-nous -
12 WP1120581 Mechanism Delay   (Replaces: 1120581) Special Order $ 223.72

13 1126120 Grille, Overflow Appelez-nous -
14 987917 Clip, Bearing (2) Appelez-nous -
15 983697 Bearing, Lever (3) Appelez-nous -
16 983696 Spring, Lever (2) Special Order $ 21.26

17 984494 Shield, Wiring Appelez-nous -
18 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

19 851386 Switch, Light Appelez-nous -
22 WP4388152 Water Fitting Assembly   (Replaces: 2157744) Special Order $ 290.25

24 2177144 Lever, Ice Dispenser Special Order $ 42.05

25 2147479 Guide, Ice Appelez-nous -
26 488892 Screw Appelez-nous -
27 2147480 Stop, Glass Appelez-nous -
28 482672 Seal Appelez-nous -
29 2189755 Socket, Lamp Appelez-nous -
30 00488362 Screw   (Replaces: 488362) Special Order $ 144.58

31 WP2162361 Switch   (Replaces: 2162361) In-Stock Immediately $ 28.71

32 984683 Insulator, Switch (2) Appelez-nous -
33 1129283 Bracket, Control Appelez-nous -
34 989331 Bulb, Light Appelez-nous -
35 983986 Spring, Plunger Appelez-nous -
36 1116563 Plunger Appelez-nous -
37 983987 Pin, Retainer Appelez-nous -
38 2177149 Lever, Water Dispenser Special Order $ 37.42

39 2189730 Plaque, Front Cover Appelez-nous -
40 2189729 Front Cover, Housing (includes Item 39) Appelez-nous -
43 488316 Screw Appelez-nous -
44 2149783 Wiring Assembly, Door Appelez-nous -
45 WP3400906 Screw   (Replaces: 489000) Special Order $ 9.05


    View Diagram in Separate Window     Print Icon   Print Part List

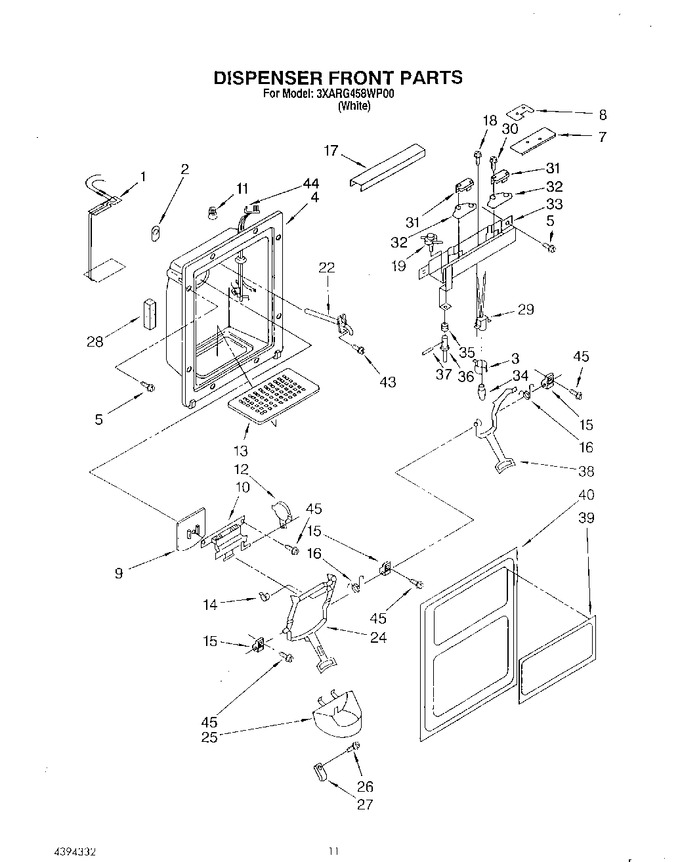

Diagram for 3XARG458WP00
