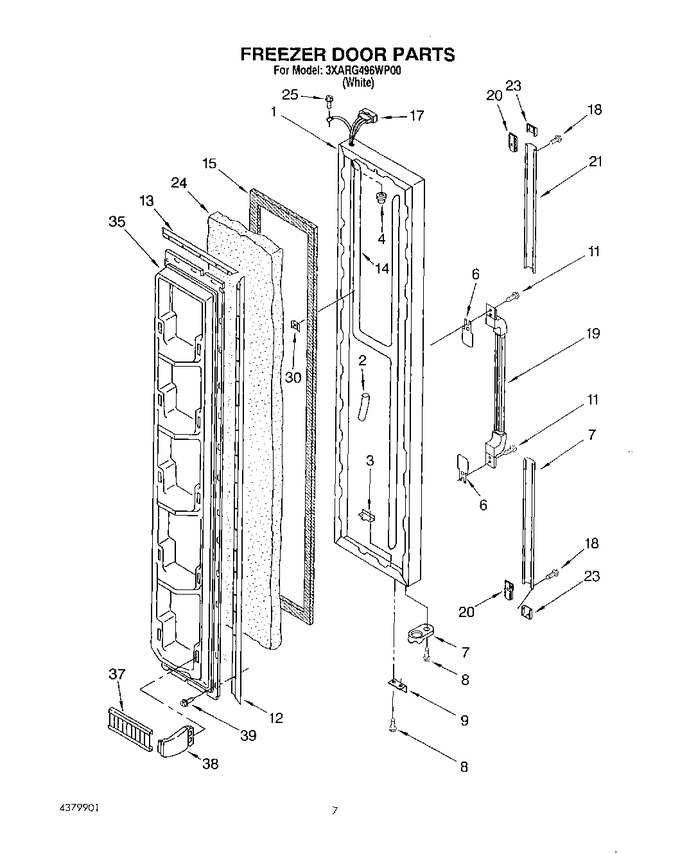

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362049		Freezer Door Panel (also Order Item 24)		Appelez-nous	-
2	1119059		Tube, Door Wiring		Appelez-nous	-
3	2155335		Tap, Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
6	2179399		Shim		Appelez-nous	-
7	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
8	WP999367		Screw   (Replaces: 489367)				$ 8.56
9	2155332		Bracket, Door Stop		Appelez-nous	-
11	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
12	1117766		Gasket Retainer, Side (2)				$ 36.55
13	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2165272		Heater, Door		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
17	2154491		Connector		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	2179366		Handle, Center		Appelez-nous	-
21	2174276		Extension, Top		Appelez-nous	-
22	2174282		Extension, Bottom		Appelez-nous	-
23	2174006		Cover, End Cap		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
25	WP488234		Screw   (Replaces: 489422)				$ 7.08
30	941242		Screw Anchor		Appelez-nous	-
35	1129241		Panel, Interior Door		Appelez-nous	-
37	2179978		Trim, Door Shelf		Appelez-nous	-
38	WP2196100		Support Trim End   (Replaces: 1110719)			Immediately	$ 9.09
39	WP489069		Screw, (28)   (Replaces: 489101)			Immediately	$ 8.40
