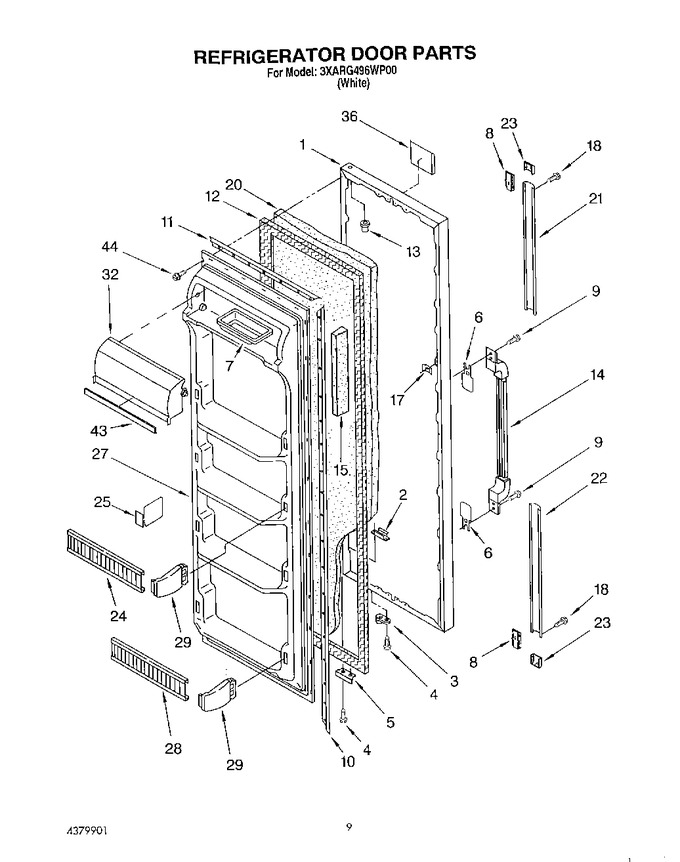

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362040		Refrigerator Door Panel (also Order Item 20)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
4	WP999367		Screw   (Replaces: 489367)				$ 8.56
5	2155332		Bracket, Door Stop		Appelez-nous	-
6	2179399		Shim		Appelez-nous	-
7	1125936		Butter, Tray		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2179366		Handle, Center		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	2174276		Extension, Top		Appelez-nous	-
22	2174282		Extension, Bottom		Appelez-nous	-
23	2174006		Cover, End Cap		Appelez-nous	-
24	2179976		Trim, Door Shelf (2)		Appelez-nous	-
25	2160050		Divider, Shelf		Appelez-nous	-
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2179977		Trim, Door Shelf (2)		Appelez-nous	-
29	4388286		Retainer, Door Trim (8)   (Replaces: 1124877)				$ 16.10
32	2148289		Compartment Door		Appelez-nous	-
36	2166630		Nameplate		Appelez-nous	-
43	2162896		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
