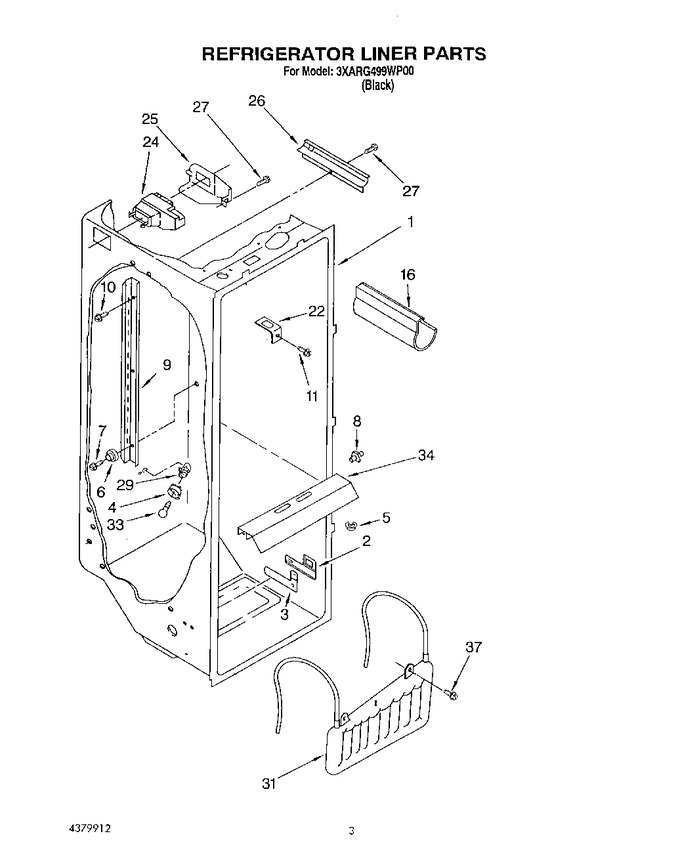

02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control   (Replaces: 2182762)				$ 86.26
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 78.07
5	2171846		Release Valve				$ 18.99
6	658944		Stud		Appelez-nous	-
7	487559		Screw		Appelez-nous	-
8	4388538		Stud   (Replaces: 1110718)			Immediately	$ 29.57
9	2171996		Ladder, Shelf		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.67
16	W10777924		Wine Rack   (Replaces: 2179374)				$ 22.30
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 32.49
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2175155)				$ 325.37
25	WP2212240		Air Diffuser Cover   (Replaces: 2161470)				$ 124.34
26	2150331		Cover, Conduit				$ 23.06
27	W10759522		Screw   (Replaces: 486298)				$ 7.42
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 104.10
31	WP2256126		Reservoir   (Replaces: 2155290)				$ 159.56
33	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
34	2174436		Light Lens				$ 51.38
37	488280		Screw (2)		Appelez-nous	-
