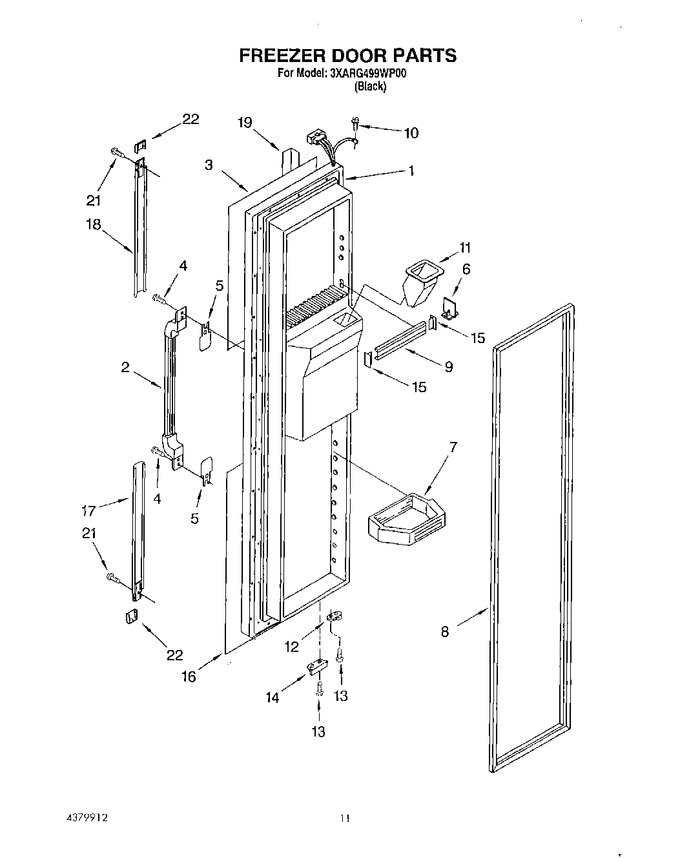

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175170		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2179368		Handle, Center		Appelez-nous	-
3	1124648		Panel Upper, Black Glass		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	1123293		Divider		Appelez-nous	-
7	2179580		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 24.27
10	WP488234		Screw   (Replaces: 489422)				$ 7.08
11	2156145		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155331		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
16	1124649		Panel, Black Glass (lower)		Appelez-nous	-
17	2174284		Extension, Bottom		Appelez-nous	-
18	2174281		Extension, Top		Appelez-nous	-
19	1119062		Trim, Door		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
22	2174008		Cover, End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
