SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Freezer Liner


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Air Flow


09 - Control


10 - Unit


11 - Icemaker, Optional

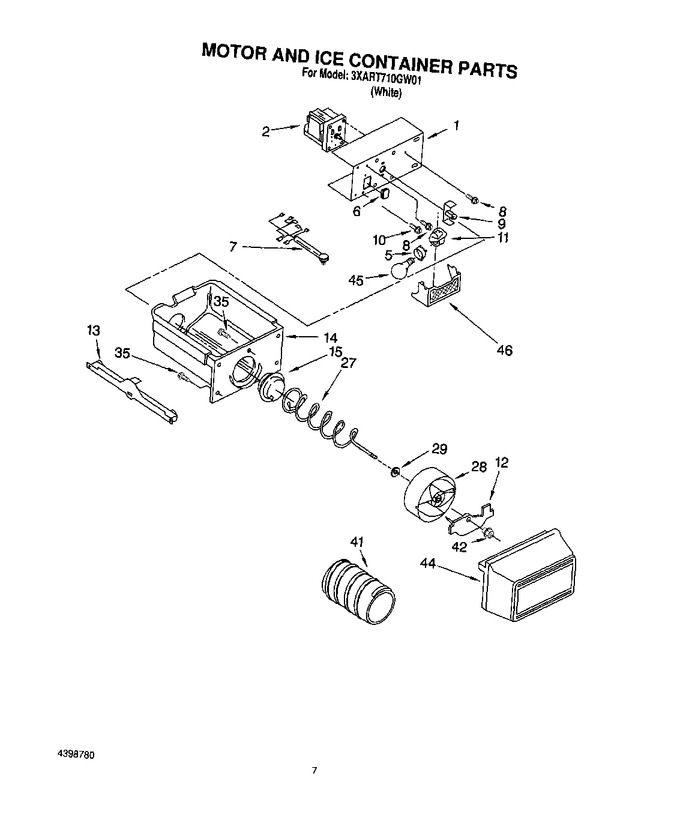

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 2183728)				$ 119.81
2	2188387		Motor, Dispenser		Appelez-nous	-
5	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 86.74
6	2195013		Plug, Bracket		Appelez-nous	-
7	2206500		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 7.30
9	WPW10169511		Coupling, Motor   (Replaces: 2205716)				$ 24.51
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
12	2181722		Baffle				$ 22.61
13	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
13	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
14	WP2196090		Ice Container   (Replaces: 2196090)				$ 214.84
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
27	2181954		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 2196194)				$ 96.97
29	WP3400912		Washer   (Replaces: 3400912)				$ 8.32
35	WP488787		Screw   (Replaces: 488886)				$ 11.26
41	4317870		Sleeve   (Replaces: 2152021)				$ 136.02
42	946195		Nut, Bearing		Appelez-nous	-
44	2174351		Front Cover Ice Container		Appelez-nous	-
45	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 95.91

    View Diagram in Separate Window       Print Part List
