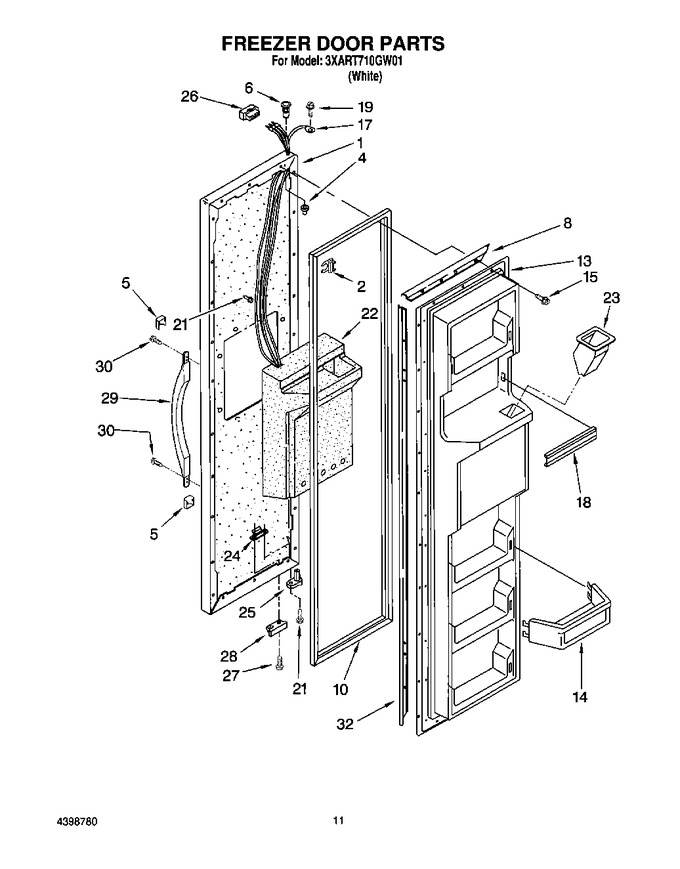

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186403W		Freezer Door Panel		Appelez-nous	-
2	2198369		Clip		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 8.52
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	1117767		Retainer, Gasket		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
13	2196140		Panel, Interior Door		Appelez-nous	-
14	2189738		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
17	2198273		Harness, Door		Appelez-nous	-
18	WP2201061		Trim, Door Shelf   (Replaces: 2177884)				$ 124.32
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
22	2149014		Insulation, Dispenser		Appelez-nous	-
23	2180204		Chute, Ice		Appelez-nous	-
24	2196135		Tap, Plate				$ 18.96
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
26	WP2154473		Housing Connector   (Replaces: 2162412)				$ 24.83
27	WP489483		Screw   (Replaces: 489420)				$ 11.41
28	2195950		Bracket, Door Stop				$ 5.84
29	2186649W		Handle, Center				$ 70.49
30	WP489491		Screw   (Replaces: 489491)				$ 7.30
32	1117766		Retainer, Gasket				$ 36.55
