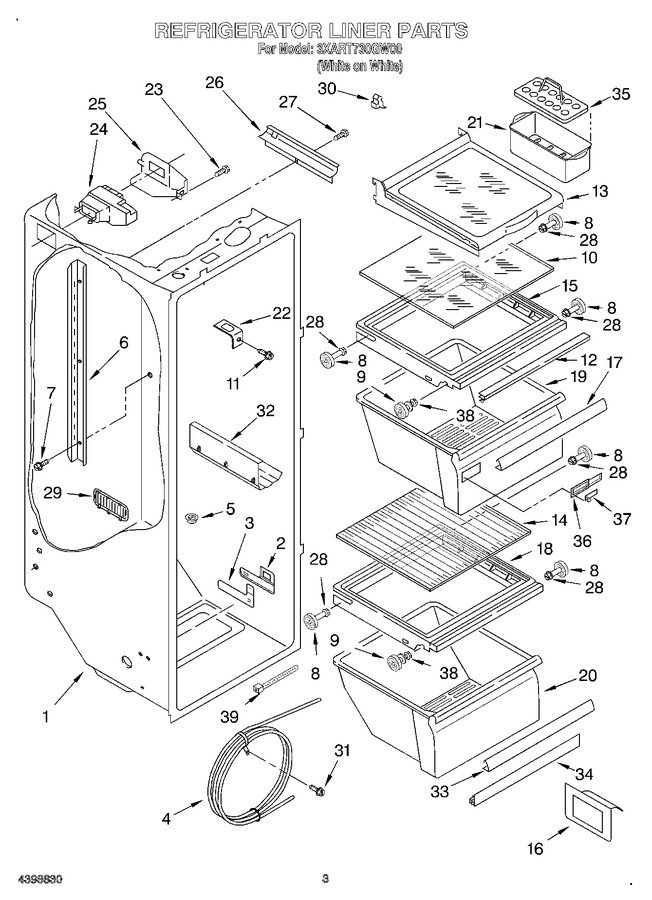

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2256126		Reservoir   (Replaces: 2209687)				$ 177.29
5	2171846		Release Valve				$ 18.99
6	2181796		Shelf Ladder (2)		Appelez-nous	-
7	WP488729		Screw (6)   (Replaces: 487539)			Immediately	$ 8.28
8	WP2196483		Stud   (Replaces: 2196483)				$ 10.87
9	W11223328		Stud   (Replaces: 2196485)			Immediately	$ 14.77
10	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
11	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
12	2174442		Gasket, Cover (front)		Appelez-nous	-
13	2194982		Shelf, Glass (3)		Appelez-nous	-
14	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
15	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
16	2179350		Deflector				$ 85.89
17	WP2179234		Trim, Crisper Pan   (Replaces: 2194913)				$ 88.57
18	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
19	WP2188656		Pan, Crisper   (Replaces: 2196160)				$ 143.22
20	WP2188664		Meat Pan   (Replaces: 2196162)			Immediately	$ 92.70
21	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP489478		Screw   (Replaces: 489478)				$ 8.18
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2175155)				$ 361.52
25	WP2212240		Air Diffuser Cover   (Replaces: 2161470)				$ 138.15
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 8.24
28	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
29	2182147		Louver		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	488280		Screw		Appelez-nous	-
32	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 24.78
33	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 88.57
34	2179561		Extension		Appelez-nous	-
35	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
36	WP2179343		Housing, Humidity Control   (Replaces: 2179343)				$ 34.02
37	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
38	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
39	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
