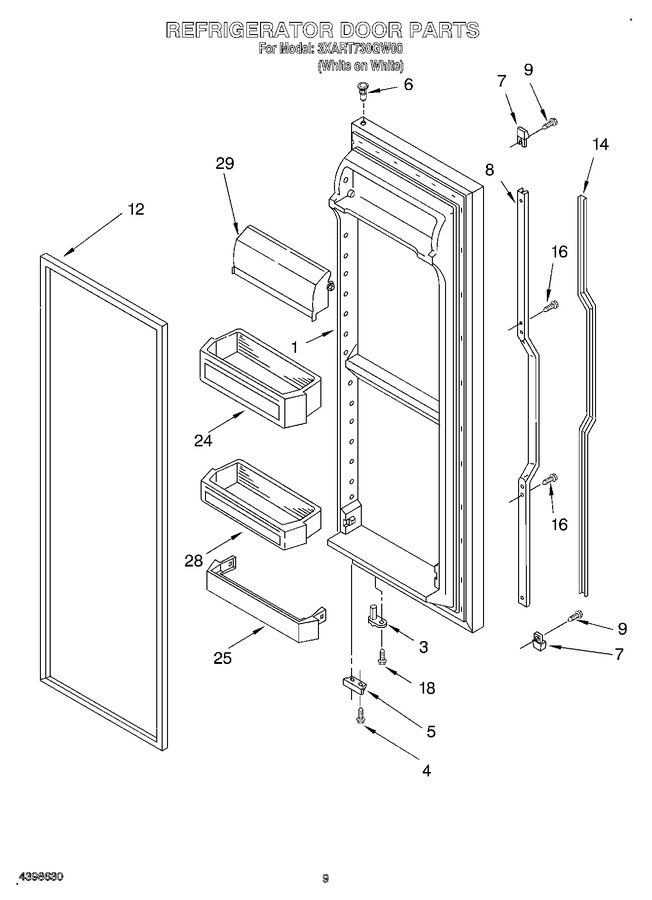

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194275W		Refrigerator Door		Appelez-nous	-
3	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2195950		Bracket, Door Stop				$ 5.84
6	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
7	2194778W		End Cap, Handle		Appelez-nous	-
8	2194776W		Retainer, Insert		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
12	2159073		Door Gasket, Magnetic				$ 333.19
14	2173830		Insert, Handle		Appelez-nous	-
16	WP489463		Screw   (Replaces: 489463)				$ 8.25
18	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
24	2177882		Door Bin, Deep (2)		Appelez-nous	-
25	WP2156022		Trim, Door Shelf   (Replaces: 2156022)			Immediately	$ 78.61
28	2177883		Door Bin (2)		Appelez-nous	-
29	WP2256101		Compartment Door   (Replaces: 2177105)			Immediately	$ 89.42
