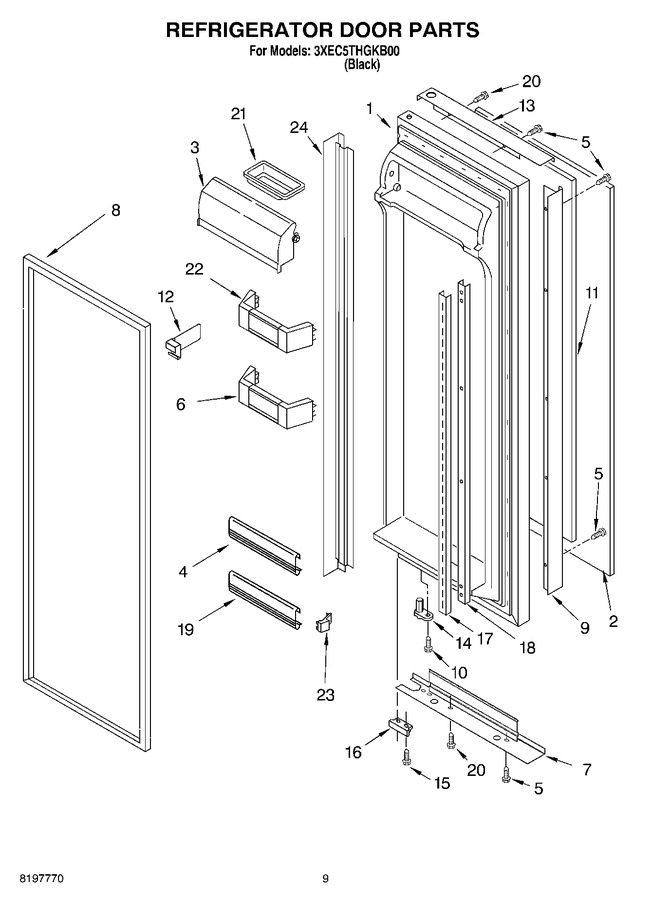

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210773B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
2	2214578B		Panel, Trim		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	2199986		Bin, Door		Appelez-nous	-
7	2207314S		Trim, Door-bottom (stainless Steel)		Appelez-nous	-
8	2209563		Door Gasket, Magnetic (service) (black)		Appelez-nous	-
9	2207308S		Handle (stainless Steel)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2214492		Shim, Panel		Appelez-nous	-
12	2195497		Divider, Bin		Appelez-nous	-
13	2207312S		Trim, Door-top (stainless Steel)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2214451		Bracket, Door Stop (black)		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	3196180		Screw		Appelez-nous	-
21	2165792		Butter, Dish		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 13.18
24	2207310S		Trim, Door (hinge Side) (stainless Steel)		Appelez-nous	-
