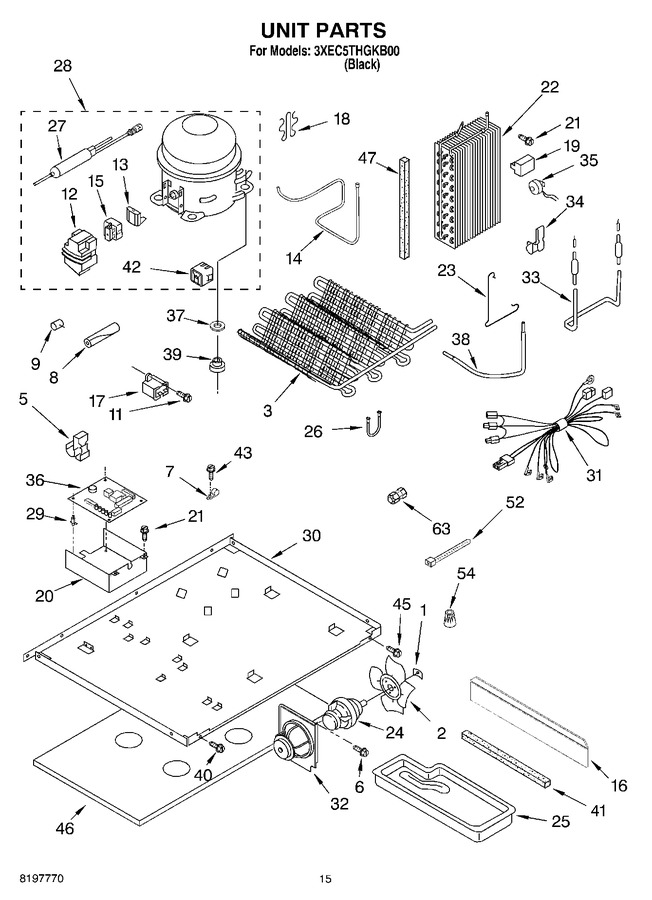

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Fan, Blade				$ 52.00
3	2205983		Condenser Assembly		Appelez-nous	-
5	2155658		Clip, Wire		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.55
7	W11456069		Clamp, Tube   (Replaces: 2185788)			Immediately	$ 22.40
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 95.29
13	2176790		Overload ((service))   (Replaces: 4387960)				$ 130.38
14	2214365		Tube Suction		Appelez-nous	-
15	WP2262184		Relay (service)   (Replaces: 4387957)				$ 123.46
16	2203020		Extension, Air Baffle		Appelez-nous	-
17	WP2201147		Capacitor (production)   (Replaces: 2201147)				$ 135.42
17	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 135.42
18	2163787		Clip, Compressor Mounting (4)				$ 7.83
19	2208183		Block, Evaporator		Appelez-nous	-
20	2199929		Housing, Control Board		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 381.49
23	2161324		Clamp		Appelez-nous	-
24	8201703		Fan, Motor   (Replaces: 2198747)				$ 371.70
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2199806		Tube, Heat Loop		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	W10309997		Compressor (includes Items 12,13,15,17, & 27) (also Order   (Replaces: 2187153)				$ 583.93
29	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
30	2210728		Unit Mounting Plate		Appelez-nous	-
31	2209577		Unit, Harness		Appelez-nous	-
32	2214631		Fan, Motor Bracket		Appelez-nous	-
33	WPW10123653		Heater, Defrost   (Replaces: 2188177)				$ 164.49
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
36	2213468		Circuit Board, Dual Temp.		Appelez-nous	-
37	680975		Washer		Appelez-nous	-
38	2214366		Tube, Condenser To Heat Loop		Appelez-nous	-
39	WP2163786		Grommet (4)   (Replaces: 2163786)				$ 8.36
40	3400515		Screw		Appelez-nous	-
41	4388500		Gasket   (Replaces: 2203876)				$ 94.91
42	2188509		Start Device, Combination (production Alternate)		Appelez-nous	-
43	WP489491		Screw   (Replaces: 489491)				$ 7.30
45	3400514		Screw		Appelez-nous	-
46	2214509		Insulation, Mounting Plate		Appelez-nous	-
47	2203160		Side Support		Appelez-nous	-
52	WP2205813		Strap   (Replaces: 2205813)				$ 8.11
54	227991		Wire Connector		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 137.25
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	WP4318044		Union   (Replaces: 2196152)				$ 10.87
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
