SELECT A DIAGRAM

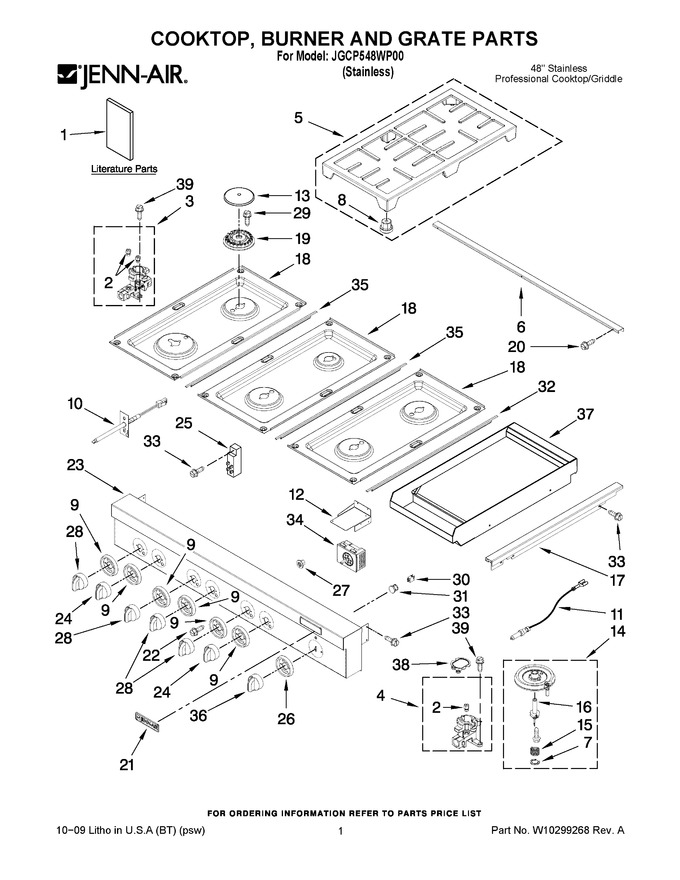

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10286834		Use & Care Guide		Appelez-nous	-
1	W10221132		Tech Sheet		Appelez-nous	-
1	W10145395		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10160232		Orifice (lr, Cf, & Rr)				$ 45.77
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
3	WPW10160187		Orifice Holder (dual - Lf & Rf)   (Replaces: W10160187)				$ 73.41
4	W10160234		Orifice Holder (lr, Cf, & Rr)				$ 51.39
4	W10282659		Orifice Holder (cr)				$ 36.45
5	W11344501		Grate, Burner   (Replaces: W10145532)			Immediately	$ 196.45
6	W10269216		Trim, Island		Appelez-nous	-
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 13.92
9	W10276494		Bezel, Front				$ 72.38
10	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 94.50
11	WPW10145991		Cr, Electrode & Wire   (Replaces: W10145991)			Immediately	$ 76.02
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 107.11
13	WP8286816		Cap, Burner (cr)   (Replaces: 8286816)				$ 99.67
13	WPW10160229		Cap, Burner (lr & Cf & Rr)   (Replaces: W10160229)			Immediately	$ 103.32
14	WPW10320937		Base, Burner (lf & Rf)   (Replaces: W10250405)				$ 141.50
14	W10189082		Base, Burner (lr & Cf & Rr)		Appelez-nous	-
15	8286863		Spring, Electrode (cr)				$ 69.23
15	W10160826		Spring, Electrode (lr, Cf, Rr, Lf & Rf)		Appelez-nous	-
16	WPW10160235		Electrode (lr, Cf & Rr)   (Replaces: W10160235)				$ 37.87
16	W10250406		Electrode (lf & Rf (dual)				$ 30.27
17	W10226012		Trim, Side (right)		Appelez-nous	-
17	W10226013		Trim, Side (left)		Appelez-nous	-
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189104		Cooktop (left)				$ 146.58
18	W10189098		Cooktop (right)		Appelez-nous	-
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 138.81
19	W10250458		Burner Head (lr & Cf & Rr)		Appelez-nous	-
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 134.88
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
21	WPW10159578		Nameplate   (Replaces: W10159578)			Immediately	$ 79.69
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W11444510		Assembly, Console   (Replaces: W10145537)		Appelez-nous	-
24	W10145568		Knob, Control (dual - Lf & Rf)				$ 47.63
25	WP71002749		Module, Spark   (Replaces: 7431P039-60)				$ 315.92
26	W10145453		Bezel, Griddle				$ 72.38
27	7103P166-60		Nut, Hex				$ 16.70
28	W10145454		Knob, Control (4)				$ 42.25
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 13.27
30	W10116114		Light, Indicator Housing			Immediately	$ 84.21
31	W10294500		Lens, Indicator Light				$ 6.92
32	W10271525		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
35	W10271524		Trim, T-strip				$ 191.11
36	W10145566		Knob, Griddle			Immediately	$ 46.49
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,311.59
38	8286930		Gasket, Orifice Holder Aux				$ 86.16
39	W11676349		Screw, Burner Rail (cr)   (Replaces: 8286921)			Immediately	$ 13.28
39	WP90767		Screw, Burner Rail (lf, Cf, Rr, Lf & Rf)   (Replaces: 7101P426-60)			Immediately	$ 7.43

    View Diagram in Separate Window       Print Part List
