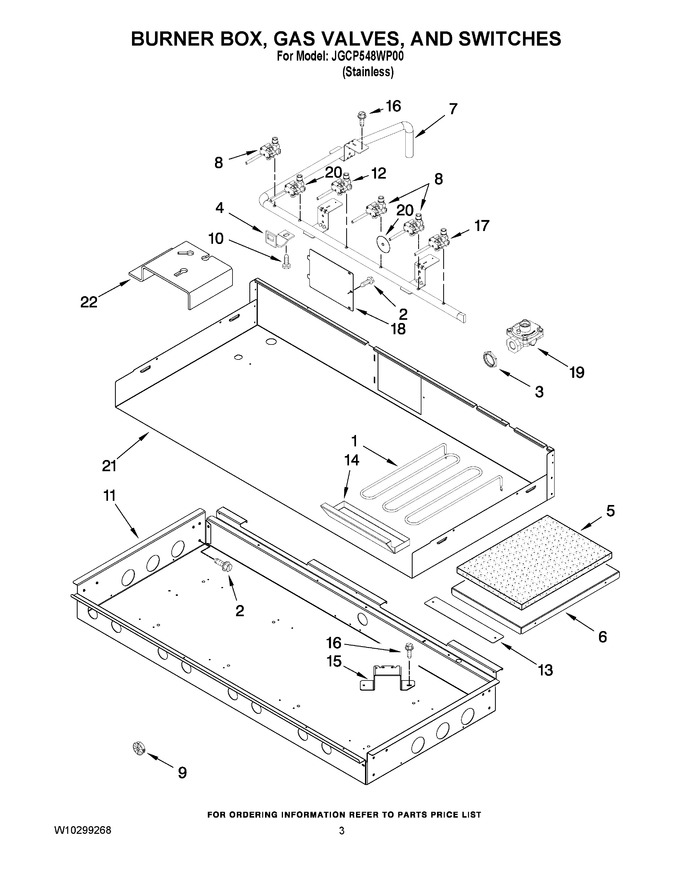

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 291.11
2	W10145620		Tray, Element Griddle		Appelez-nous	-
3	W10115953		Nut, Burner				$ 8.80
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
6	W10246074		Tray, Insulation Griddle		Appelez-nous	-
7	W10115896		Manifold				$ 104.48
8	W10250407		Valve, Gas (lr & Cf & Rr)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw, Valve Mtg				$ 6.14
11	W10250424		Burner Box		Appelez-nous	-
12	WPW10385583		Valve, Gas (cr)   (Replaces: W10284547)			Immediately	$ 298.89
13	W10250433		Cover, Plate		Appelez-nous	-
14	W10276497		Drip Tray, Griddle				$ 363.63
15	W10115929		Bracket, Burner (lf,lr,cf,rf & Rr)		Appelez-nous	-
15	W10280796		Bracket, Burner (cr)		Appelez-nous	-
16	4450800		Screw				$ 12.12
17	WPW10371235		Valve, Gas (lf & Rf)   (Replaces: W10250410)			Immediately	$ 298.94
18	W10115843		Cover, Ignition		Appelez-nous	-
19	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 306.39
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10189155		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 77.27
NI	W10115908		Tubing, Gas (lf & Rf - High)		Appelez-nous	-
NI	W10115910		Tubing, Gas (lr & Cf & Rr)				$ 176.20
NI	W10115911		Tubing, Gas (lf & Rf - Low)				$ 169.51
NI	W10280797		Valve, Gas (cr)		Appelez-nous	-
