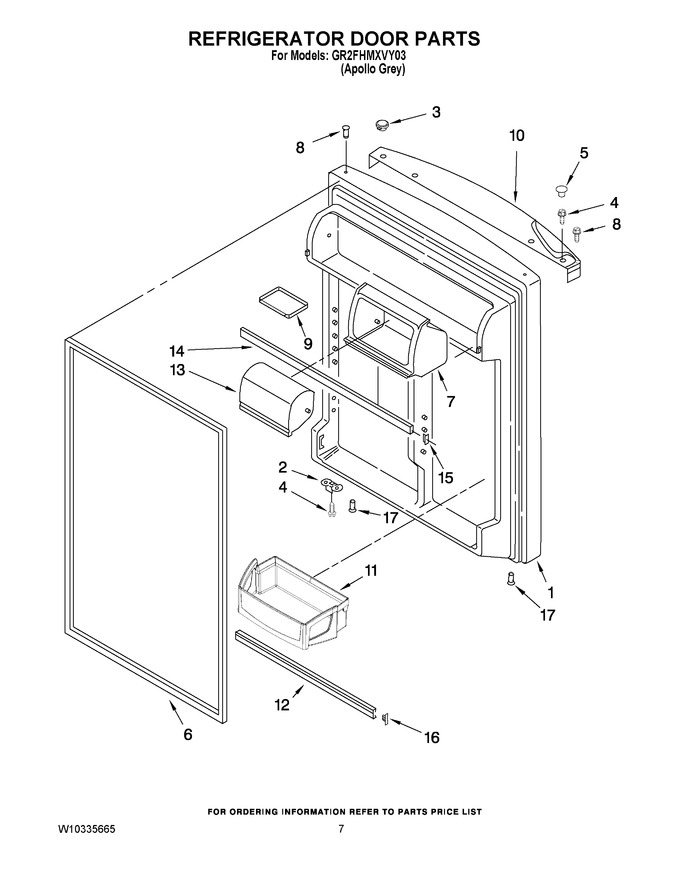

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271889 | Refrigerator Door (includes Illus. 6 & 8) (ss Apollo Grey) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2254518 | Hole Plug, Endcap (apollo Grey) |
|
$ 33.66 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2254517 | Hole Plug Hinge Sleeve (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 6 | W10249195 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10171475) |
|
$ 302.22 | |||||
| 7 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 8 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 9 | 2195388 | Tray, Door |
|
- | |||||
| 10 | W10171488 | Endcap, Handle (apollo Grey) |
|
- | |||||
| 11 | 2304918 | Bin, Door Shelf (3) |
|
$ 39.43 | |||||
| 12 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 103.27 | |||||
| 13 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 14 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 15 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 16 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 17 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 |
