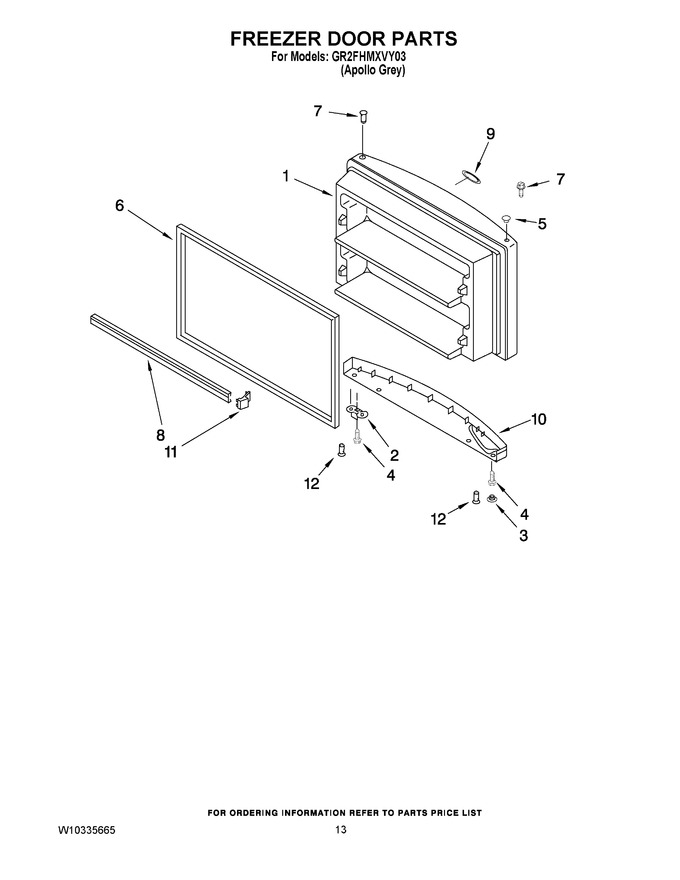

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271890 | Freezer Door (includes Illus. 6 & 7) (ss Apollo Grey) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2254518 | Hole Plug, Endcap (apollo Grey) |
|
$ 33.66 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2254517 | Hole Plug Hinge Sleeve (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 6 | W10249196 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10171479) |
|
Immediately | $ 251.19 | ||||
| 7 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 8 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 9 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 10 | W10171486 | Endcap, Handle (apollo Grey) |
|
- | |||||
| 11 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 12 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 |
