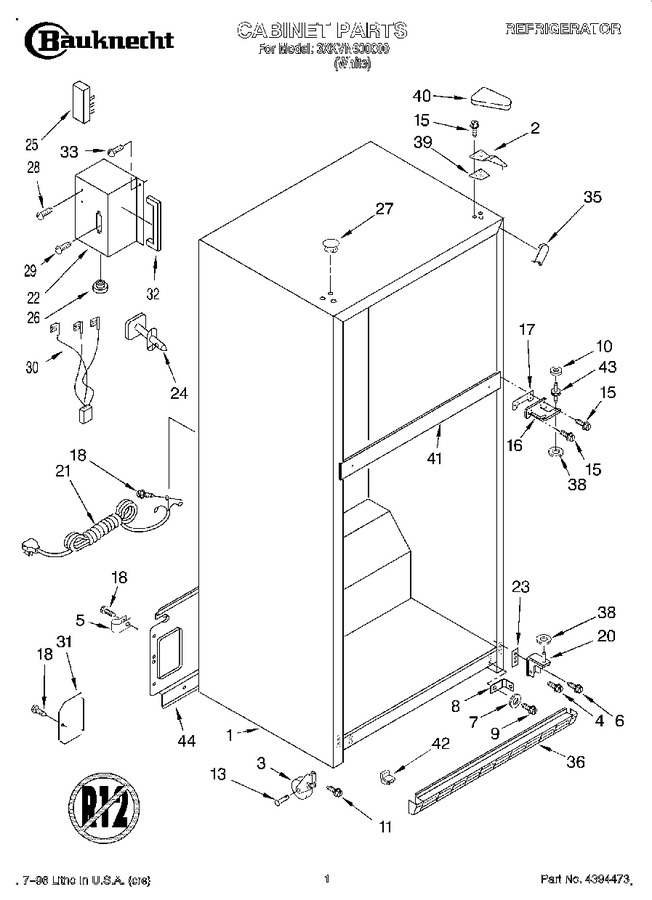

01 - Cabinet
02 - Liner
03 - Shelf
04 - Refrigerator Door
05 - Unit
06 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2174690 | Hinge (top) |
|
- | |||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | 489436 | Screw |
|
- | |||||
| 5 | 489348 | Clamp, Tube (water Supply Line) |
|
- | |||||
| 6 | 489459 | Screw |
|
- | |||||
| 7 | WP489467 | Washer (Replaces: 489467) |
|
Immediately | $ 11.42 | ||||
| 8 | 2174899 | Bracket, Bottom Hinge |
|
- | |||||
| 9 | 489462 | Screw |
|
- | |||||
| 10 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 11 | 2174650 | Screw |
|
- | |||||
| 13 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 15 | WP999367 | Screw (Replaces: 489423) |
|
$ 8.56 | |||||
| 16 | 2183066 | Hinge, Center |
|
- | |||||
| 17 | 2163757 | Shim, Hinge Center |
|
- | |||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 20 | 2179810 | Hinge Butt |
|
- | |||||
| 21 | 1129332 | Service Cord |
|
- | |||||
| 22 | 2158579 | Enclosure, Terminal Block |
|
- | |||||
| 23 | 2172745 | Shim, Bottom Hinge |
|
- | |||||
| 24 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 25 | 1129346 | Terminal Block |
|
- | |||||
| 26 | 1129449 | Bushing |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2151652) |
|
$ 22.87 | |||||
| 28 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 29 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 30 | 2166651 | Wiring Assembly |
|
- | |||||
| 31 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 32 | 2167227 | Gasket |
|
- | |||||
| 33 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 35 | WPW10283959 | Corner Filler (2) (Replaces: 2163733) |
|
$ 8.21 | |||||
| 36 | 2182432 | Grille |
|
- | |||||
| 38 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 39 | 2176201 | Shim |
|
- | |||||
| 40 | 2172613 | Cover-hinge |
|
- | |||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 42 | 2166156 | Corner Filler, Grille |
|
- | |||||
| 43 | WP2254618 | Pin, Hinge (Replaces: 2183063) |
|
Immediately | $ 92.02 | ||||
| 44 | 2183159 | Cover, Unit |
|
- |
