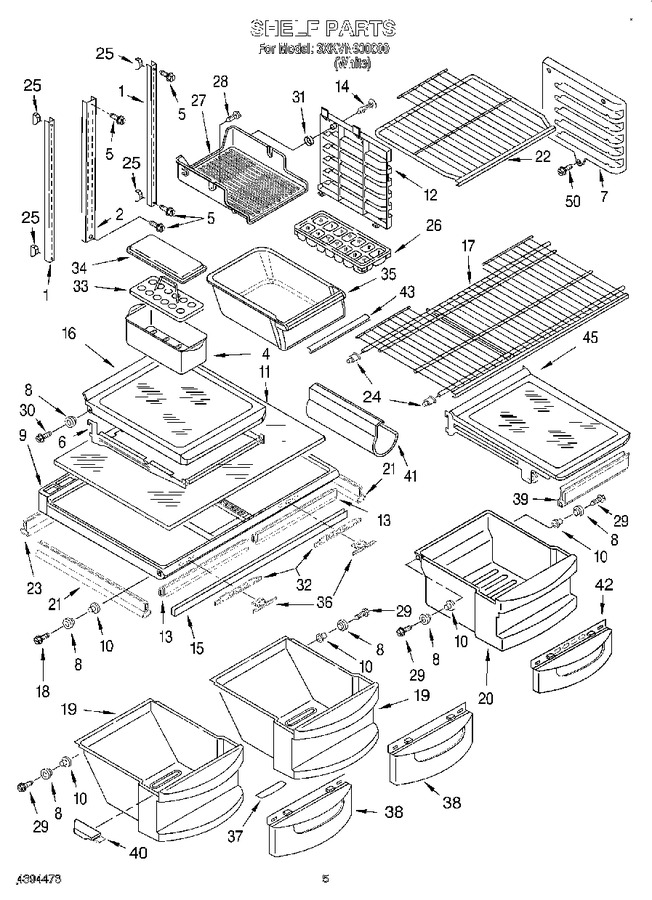

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	2174014		Frame Assembly, Cantilever		Appelez-nous	-
7	2172625		Bracket, Shelf Mounting (r.s.)		Appelez-nous	-
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2174128		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174141		Glass, Crisper Cover				$ 98.12
12	2184459		Divider, Freezer Shelf		Appelez-nous	-
13	WP1125528		Gasket, Crisper Cover (front) (2)   (Replaces: 2179213)				$ 161.69
14	2176270		Fastener		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2174012		Shelf Assembly, Spillguard (3) (includes Rollers)		Appelez-nous	-
17	2166223		Shelf, Freezer		Appelez-nous	-
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
19	2175430		Pan, Crisper (includes 8, 10, 29, 37, 38 & 40)		Appelez-nous	-
20	2175448		Pan, Meat (includes 8, 10, 29, 42)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
22	2166112		Shelf, Freezer (top)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear) (2)		Appelez-nous	-
24	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
25	520965		Screw, Support				$ 31.35
26	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
27	2172626		Shelf, Ice Tray		Appelez-nous	-
28	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
29	WP489261		Screw   (Replaces: 489261)				$ 8.33
30	489439		Screw		Appelez-nous	-
31	2176292		Support, Ice Tray Shelf		Appelez-nous	-
32	2174257		Slide, Humidity		Appelez-nous	-
33	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
34	2169935		Cover		Appelez-nous	-
35	2168967		Ice Cube Pan		Appelez-nous	-
36	2174253		Button, Humidity Control		Appelez-nous	-
37	2166897		Nameplate		Appelez-nous	-
38	2175373		Window		Appelez-nous	-
39	2174396		Gasket, Front		Appelez-nous	-
40	2174259		Cap, Crisper (left Side)		Appelez-nous	-
40	2174258		Cap, Crisper (right Side)		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179404)				$ 24.78
42	2175445		Window		Appelez-nous	-
43	2176360		Trim, Ice Bucket		Appelez-nous	-
45	2190504		Shelf Assembly, Spillguard		Appelez-nous	-
50	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
