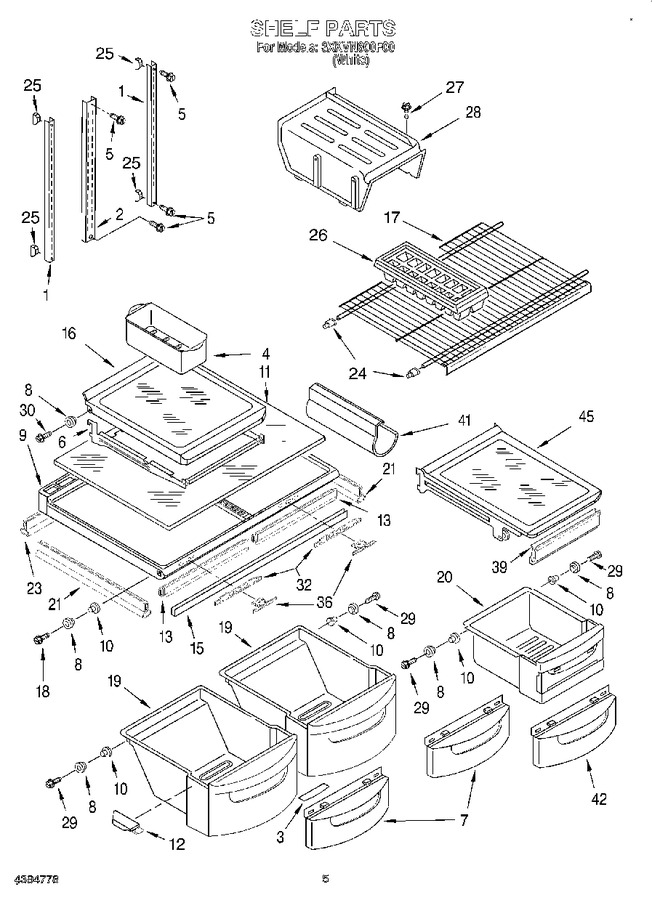

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2163826 | Shelf, Ladder Center |
|
- | |||||
| 3 | 2166897 | Nameplate |
|
- | |||||
| 4 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 19.54 | |||||
| 5 | W11544659 | Screw (Replaces: 489415) |
|
$ 14.35 | |||||
| 6 | 2174014 | Frame Assembly, Cantilever |
|
- | |||||
| 7 | 2175373 | Window |
|
- | |||||
| 8 | 2174388 | Roller & Tread Assembly |
|
- | |||||
| 9 | 2198961 | Crisper Cover (includes Rollers) |
|
- | |||||
| 10 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 11 | 2174141 | Glass, Crisper Cover |
|
$ 98.12 | |||||
| 12 | 2174258 | Cap, Crisper (left Side) |
|
- | |||||
| 12 | 2174259 | Cap, Crisper (right Side) |
|
- | |||||
| 13 | WP1125528 | Gasket, Crisper Cover (front) (2) (Replaces: 2179213) |
|
$ 161.69 | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 102.08 | |||||
| 16 | 2174012 | Shelf Assembly, Spillguard (3) (includes Rollers) |
|
- | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 18 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 19 | 2175430 | Pan, Crisper (includes 3, 7, 8, 10, 12, 29) |
|
- | |||||
| 20 | 2175448 | Pan, Meat (includes Rollers) |
|
- | |||||
| 21 | 2179214 | Gasket, Crisper Cover (side) (4) |
|
- | |||||
| 23 | 2179216 | Gasket, Crisper Cover (rear) (2) |
|
- | |||||
| 24 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 25 | 2189314 | Support |
|
- | |||||
| 26 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 27 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 28 | 2172569 | Shelf, Ice Tray |
|
- | |||||
| 29 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 30 | 489439 | Screw |
|
- | |||||
| 32 | 2174257 | Slide, Humidity |
|
- | |||||
| 36 | 2174253 | Button, Humidity Control |
|
- | |||||
| 39 | 2174396 | Gasket, Front |
|
- | |||||
| 41 | W10777924 | Wine Rack Assembly (Replaces: 2179375) |
|
$ 24.78 | |||||
| 42 | 2175445 | Window, Meat Pan |
|
- | |||||
| 45 | 2190504 | Shelf Assembly, Spillguard |
|
- | |||||
| 51 | 2182582 | Featurepak (includes 4, 6, 16 20, 41, 42 & 45. See Also Refrigerator Door Parts And Freezer Door Par |
|
- |
