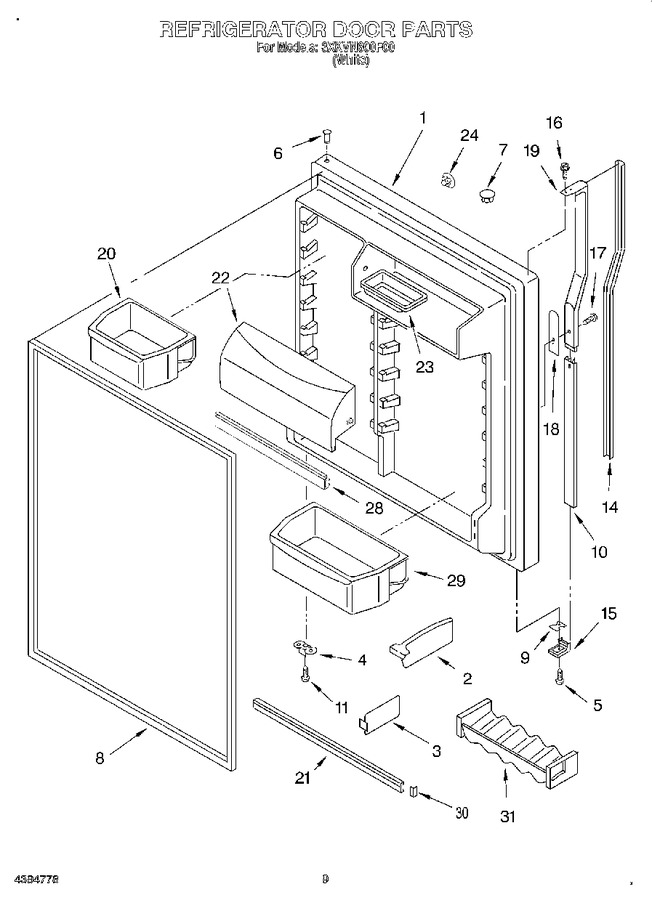

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183935 | Refrigerator Door (includes No.8) |
|
- | |||||
| 2 | 1123293 | Divider, Door Bin |
|
- | |||||
| 3 | 1123293 | Divider, Door Shelf |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159061 | Door Gasket, Magnetic |
|
Immediately | $ 183.67 | ||||
| 9 | 2151813 | Shim, Handle |
|
- | |||||
| 10 | 2168900 | Retainer, Insert |
|
- | |||||
| 11 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 14 | 2168896 | Insert, Handle |
|
- | |||||
| 15 | 1107236 | End Cap, Handle |
|
- | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 1107650 | Spacer, Handle |
|
- | |||||
| 19 | 2161509 | Handle |
|
- | |||||
| 20 | 2171066 | Bin, Door Shelf (2) |
|
- | |||||
| 21 | WPW10421486 | Shelf, Trim (Replaces: 2195948) |
|
$ 114.74 | |||||
| 22 | 2182399 | Door, Compartment |
|
- | |||||
| 23 | 2165792 | Tray, Butter |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 28 | 2159124 | Gasket, Door Compartment |
|
- | |||||
| 29 | 2171063 | Bin, Door Shelf |
|
- | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | 2193409 | Beverage Holder |
|
$ 48.13 | |||||
| 32 | 2182582 | Featurepak (includes 3, 20 21, 23, 29, 30 & 31. See Also Shelf Parts And Freezer Door Parts Page.) |
|
- |
