SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container

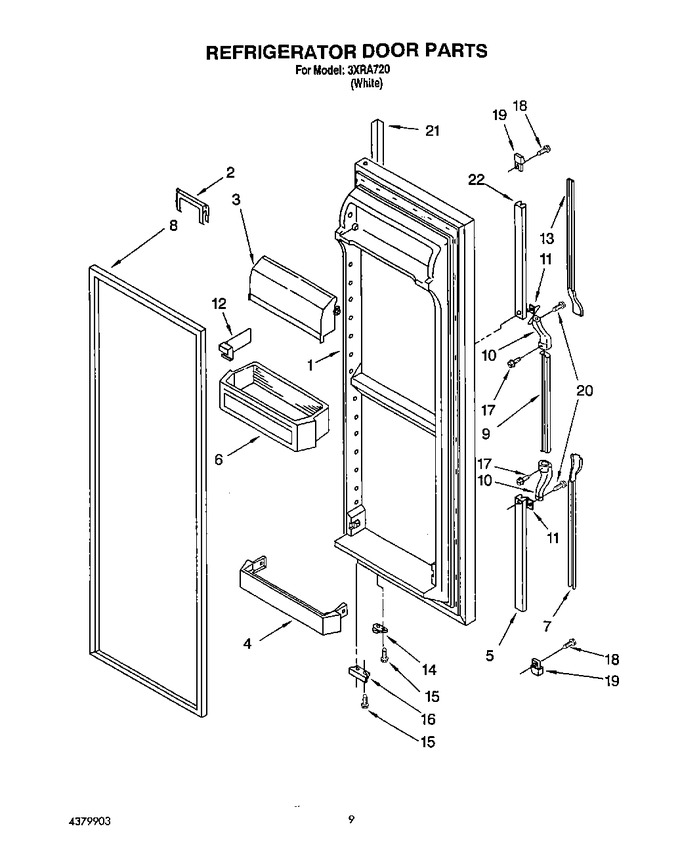

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177319		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	1119360		Retainer, Insert		Appelez-nous	-
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179574)			Immediately	$ 44.95
7	1119361		Insert, Bottom		Appelez-nous	-
8	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
9	1124713		Handle, Center		Appelez-nous	-
10	1119359		End Cap		Appelez-nous	-
11	935075		Shim		Appelez-nous	-
12	2171284		Divider, Bin		Appelez-nous	-
13	1119373		Insert, Top		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155332		Bracket, Door Stop		Appelez-nous	-
17	489022		Screw		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	2156220		End Cap		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
21	1119062		Cover, End Cap		Appelez-nous	-
22	1119372		Retainer, Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
