SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door

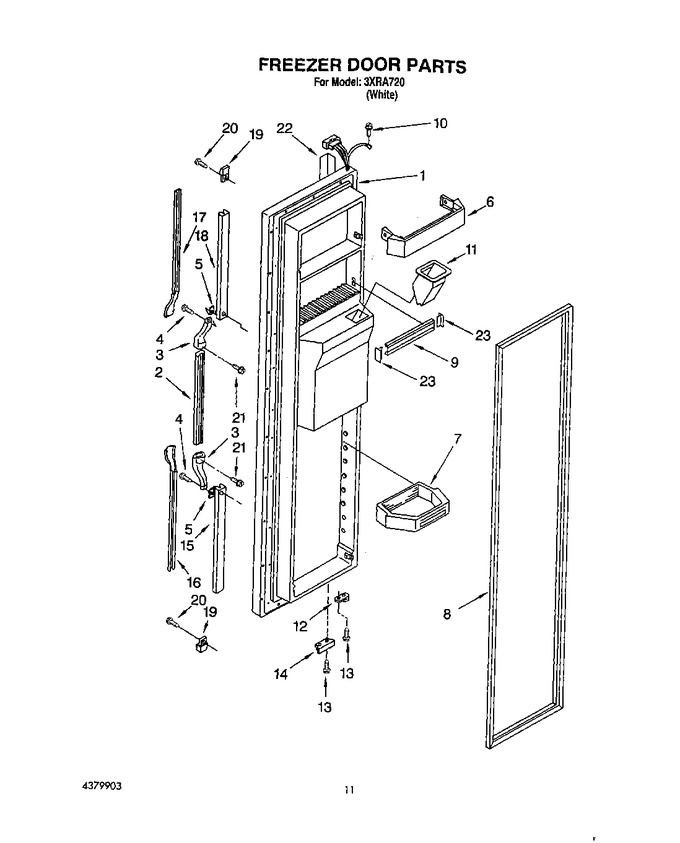

07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175057		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	1124713		Handle, Center		Appelez-nous	-
3	1119359		End Cap		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	935075		Shim		Appelez-nous	-
6	WP2171157		Trivet, Shelf (2)   (Replaces: 2171157)				$ 63.70
7	2179576		Shelf Bin (2)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 24.27
10	WP488234		Screw   (Replaces: 489422)				$ 7.08
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155332		Bracket, Door Stop		Appelez-nous	-
15	1119360		Retainer, Insert		Appelez-nous	-
16	1119361		Insert, Bottom		Appelez-nous	-
17	1119373		Insert, Top		Appelez-nous	-
18	1119372		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	489022		Screw		Appelez-nous	-
22	1119062		Trim, Door		Appelez-nous	-
23	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79

    View Diagram in Separate Window       Print Part List
