01 - Cabinet, Literature
02 - Liner
03 - Shelf
04 - Door
05 - Unit
06 - Icemaker
07 - Water Dispenser
SELECT A DIAGRAM
New Model Search:

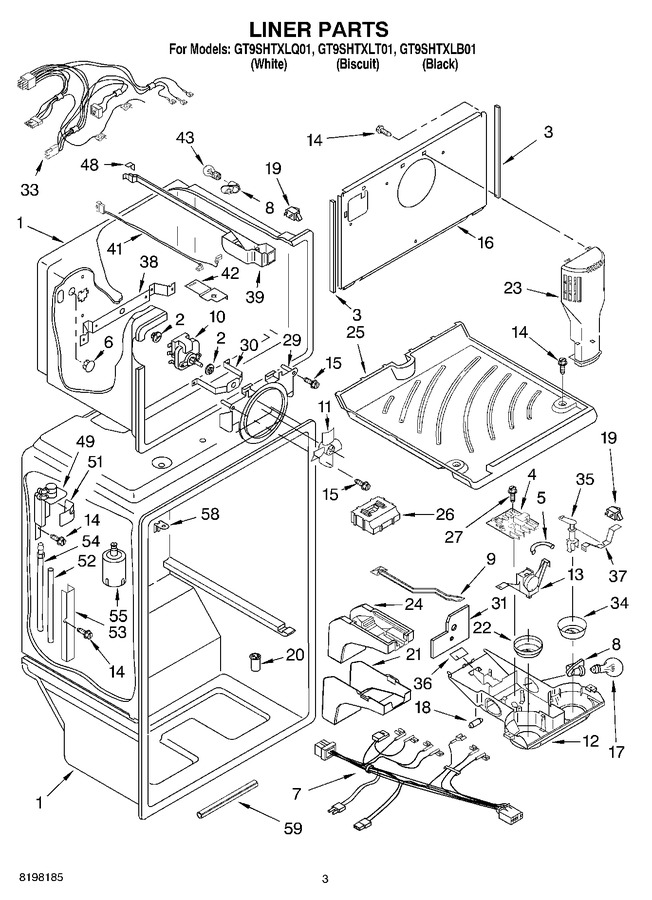

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2189270) |
|
$ 25.31 | |||||
| 4 | WP2304099 | Adaptive Defrost Control (Replaces: 2213473) |
|
Immediately | $ 266.62 | ||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.23 | |||||
| 7 | 2187351 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (3) (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 68.73 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 96.85 | ||||
| 12 | 2212981 | Control Box |
|
- | |||||
| 13 | 2200830 | Thermostat Assy. (includes Items 5, 18 & 36) |
|
- | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | 2201173 | Cover-evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 89.24 | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 28.72 | |||||
| 23 | 2182340 | Air Tower |
|
$ 43.02 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 117.93 | ||||
| 25 | 2172565 | Freezer Floor |
|
- | |||||
| 26 | 2179877 | Air Diffuser, Top |
|
- | |||||
| 27 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.36 | |||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2214979 | Bracket, Evap. Fan, Front |
|
$ 56.05 | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 33 | 2187568 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | 2179859 | Post, Damper |
|
- | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 9.01 | |||||
| 37 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 38 | 2214976 | Bracket, Evap. Fan, Rear |
|
$ 29.44 | |||||
| 39 | 2201152 | Housing, Freezer Light |
|
- | |||||
| 41 | 2221682 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | 4396822 | Light Bulb (Replaces: 850166) |
|
Immediately | $ 12.22 | ||||
| 48 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 49 | 2210510 | Bracket Assembly, Water Filter |
|
- | |||||
| 51 | 2219639 | Cover, Filter |
|
- | |||||
| 52 | 2219699 | Tube, Filter Inlet |
|
- | |||||
| 53 | 2210521 | Cover, Tubing |
|
- | |||||
| 54 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 29.17 | ||||
| 55 | 2206039 | Filter Cartridge |
|
- | |||||
| 58 | 2210563 | Clip, Retainer |
|
- | |||||
| 59 | 2214981 | Tube, Insulation |
|
- |
