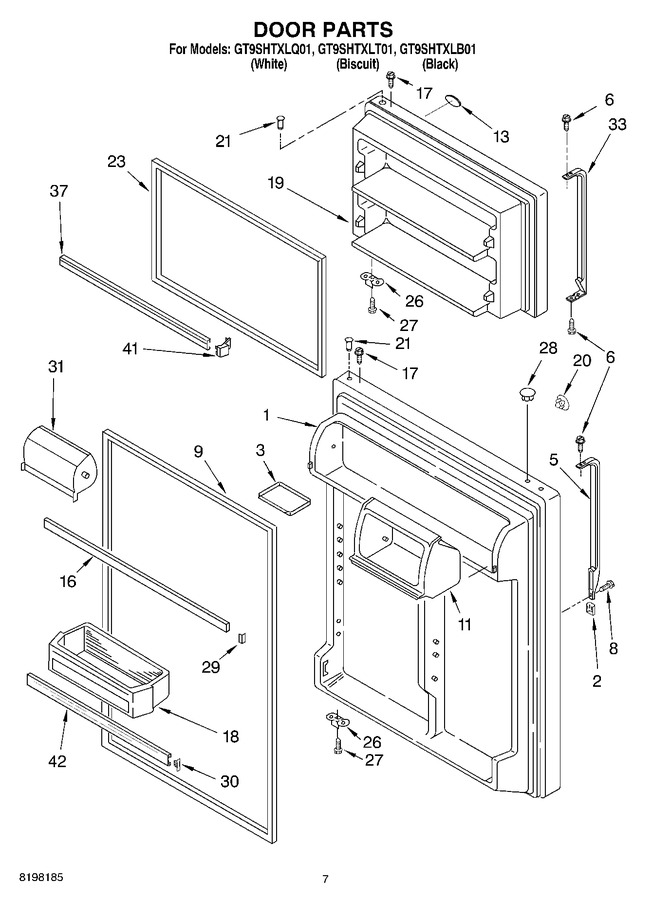

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205286		Refrigerator Door (includes No.9 & No.21) (biscuit)		Appelez-nous	-
1	2200614		Refrigerator Door (includes No.9 & No.21) (black)		Appelez-nous	-
1	2183864		Refrigerator Door (includes No.9 & No.21) (white)		Appelez-nous	-
2	2193353T		Handle, Trim (biscuit)		Appelez-nous	-
2	2193353B		Handle, Trim (black)				$ 5.85
2	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 7.67
3	2159302		Tray, Door				$ 42.08
5	4388947		Handle (white)   (Replaces: 2213112W)				$ 184.02
5	2213112T		Handle (biscuit)		Appelez-nous	-
5	4388950		Handle (black)   (Replaces: 2213112B)				$ 212.23
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
9	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 168.76
11	2210566		Housing Comp.				$ 65.25
13	2220214		Nameplate				$ 32.43
16	2159312		Trim-door Shelf				$ 47.75
17	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
18	2204811		Door Bin (3)				$ 35.90
19	2205130		Freezer Door Panel (biscuit)		Appelez-nous	-
19	2183860		Freezer Door Panel (white)		Appelez-nous	-
19	2200620		Freezer Door Panel (black)		Appelez-nous	-
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 6.85
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.17
21	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
23	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 148.12
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2218109		Compartment Door				$ 33.66
33	4388947		Handle, F.c. (white)   (Replaces: 2213111W)				$ 184.02
33	2213111T		Handle, F.c. (biscuit)		Appelez-nous	-
33	4388950		Handle, F.c. (black)   (Replaces: 2213111B)				$ 212.23
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 11.86
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 122.63
