01 - Air Flow And Control Parts


02 - Unit Parts


03 - Cabinet Parts

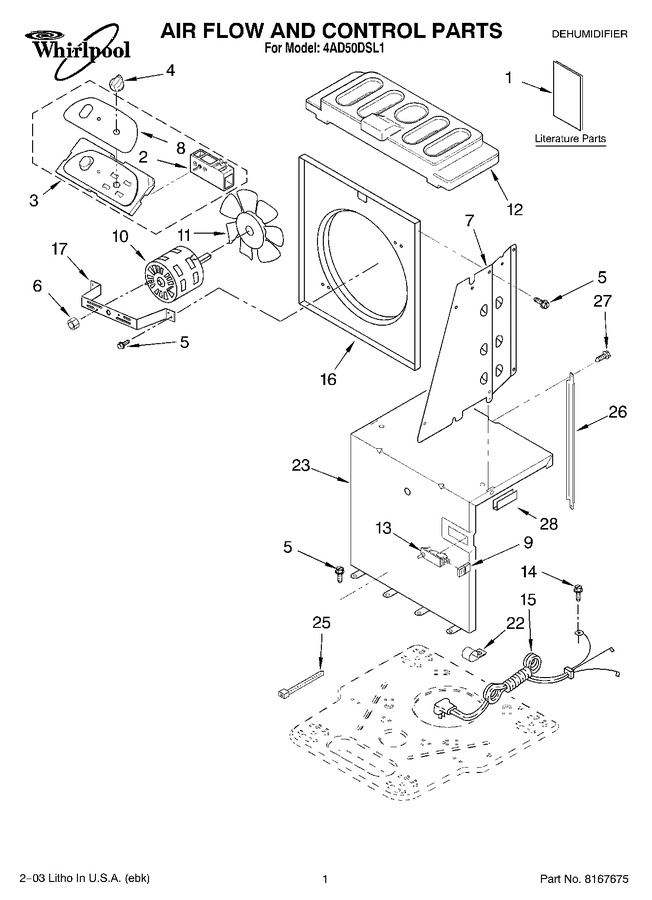

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1186252		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1183852		Use & Care Guide		Appelez-nous	-
2	1168670		Humidistat, Control				$ 56.42
3	1186258		Assembly, Control Panel		Appelez-nous	-
4	1168687		Knob		Appelez-nous	-
5	WP489069		Screw, S.m. 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
6	1183427		Bracket, Motor		Appelez-nous	-
7	1168758		Panel, Air System (left Side)		Appelez-nous	-
7	1168759		Panel, Air System (right Side)		Appelez-nous	-
8	1168843		Escutcheon		Appelez-nous	-
9	1168781		Barrier, Bucket Fill Switch		Appelez-nous	-
10	1186256		Motor, Fan		Appelez-nous	-
11	1168661		Blade, Fan		Appelez-nous	-
12	1168681		Cover, Air System		Appelez-nous	-
13	1186480		Switch, Bucket Fill/check		Appelez-nous	-
14	WPW10141604		Screw, 8-18 X .295   (Replaces: 487871)				$ 8.85
15	1186261		Cord, Appliance		Appelez-nous	-
16	1168666		Plate, Orifice		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 7.32
22	1180504		Relief, Strain		Appelez-nous	-
23	1184946		Support, Air System		Appelez-nous	-
25	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 8.30
26	1168752		Brace, Support		Appelez-nous	-
27	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
28	1180634		Edge Guard		Appelez-nous	-
