01 - Air Flow And Control Parts


02 - Unit Parts


03 - Cabinet Parts

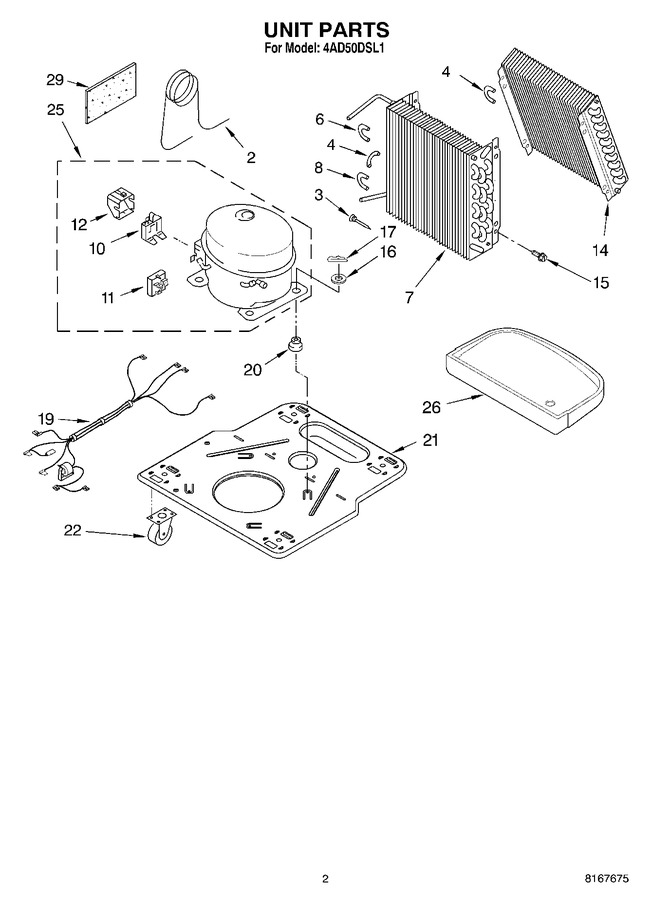

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1168734		Tube, Restrictor (length 30.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
4	708532		Bend, Return Evaporator (9)		Appelez-nous	-
6	8031223		Bend, Return Condenser (2)		Appelez-nous	-
7	1184770		Condenser		Appelez-nous	-
8	8031222		Bend, Return (15)		Appelez-nous	-
10	WP61006295		Overload, Protector   (Replaces: 2208172)				$ 129.35
11	1183843		Relay, Start		Appelez-nous	-
12	1182781		Cover, Terminal		Appelez-nous	-
14	1185204		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 8.40
16	680975		Washer		Appelez-nous	-
17	24364001		Clip, Compressor		Appelez-nous	-
19	1186319		Harness, Wire		Appelez-nous	-
20	1168722		Grommet (4)		Appelez-nous	-
21	1168654		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1183841		Compressor, (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
29	1184625		Insulation (restrictor Tube)		Appelez-nous	-
