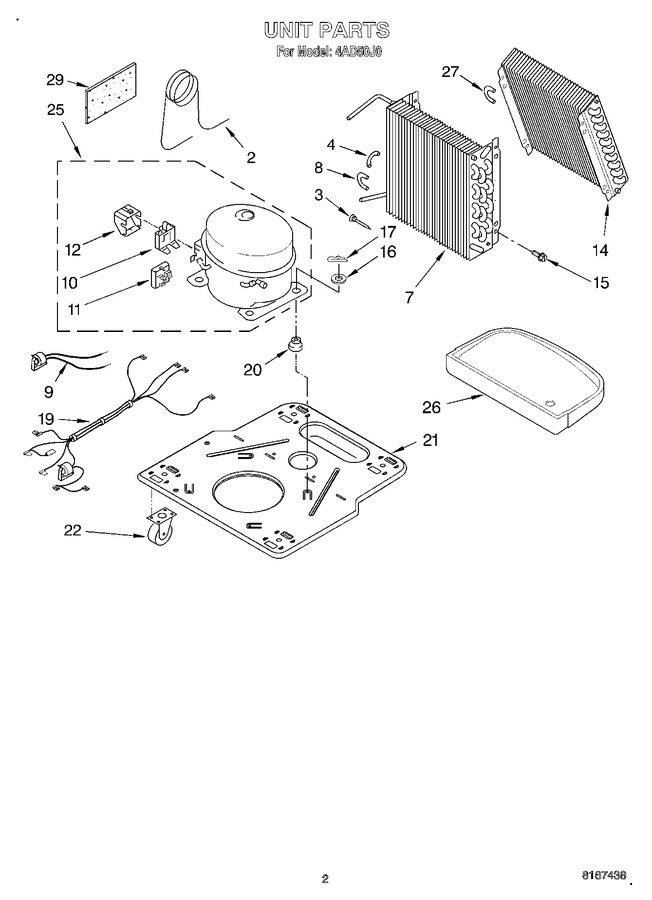

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1168729 | Tube, Restrictor (length 30.00``) |
|
- | |||||
| 3 | WP1162526 | Strainer (Replaces: 1162526) |
|
$ 84.42 | |||||
| 4 | 708532 | Bend, Return (2) |
|
- | |||||
| 7 | 1168657 | Condenser |
|
- | |||||
| 8 | 708531 | Bend, Return (12) |
|
- | |||||
| 9 | 1183833 | Deicer, Bimetal |
|
- | |||||
| 10 | WP61006295 | Overload, Protector (Replaces: 2208172) |
|
$ 129.35 | |||||
| 11 | 1183843 | Relay, Start |
|
- | |||||
| 12 | 1182781 | Cover, Terminal |
|
- | |||||
| 14 | 1168655 | Evaporator |
|
- | |||||
| 15 | WP489069 | Screw, 8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 16 | 680975 | Washer |
|
- | |||||
| 17 | 24364001 | Clip, Compressor |
|
- | |||||
| 19 | 1183906 | Harness, Wire |
|
- | |||||
| 20 | 1168722 | Grommet (4) |
|
- | |||||
| 21 | 1168654 | Base |
|
- | |||||
| 22 | 1164241 | Caster (4) |
|
- | |||||
| 25 | 1183841 | Compressor, (complete Assembly) |
|
- | |||||
| 26 | 1168761 | Pan, Drain |
|
- | |||||
| 27 | 854624 | Bend, Return (9) |
|
- | |||||
| 29 | 1162650 | Insulation, Restrictor Tube |
|
- |
