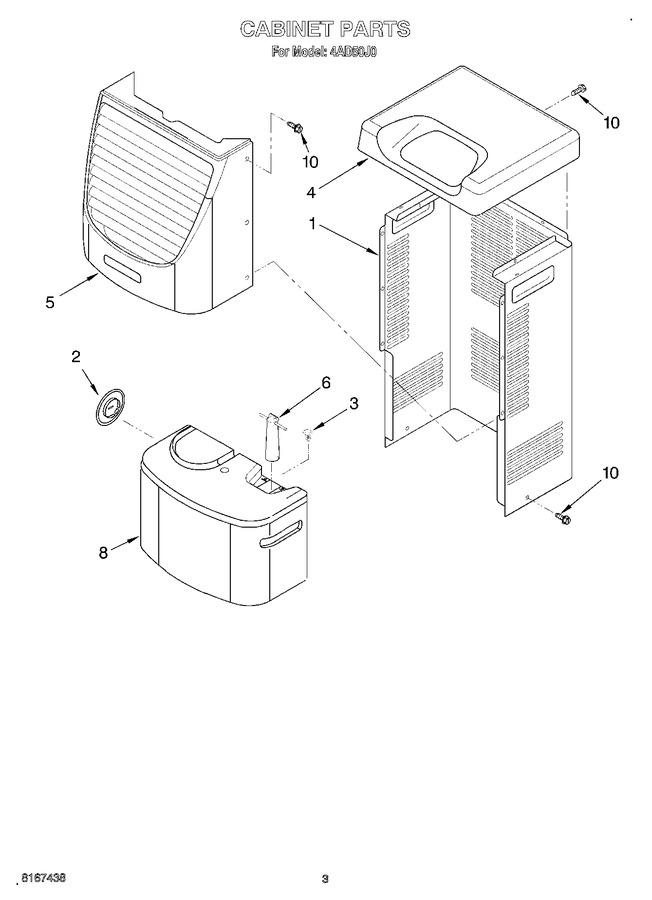

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1168667 | Cabinet |
|
- | |||||
| 2 | 1172098 | Cover, Hose Connection |
|
- | |||||
| 3 | 1168762 | Clip, Float |
|
- | |||||
| 4 | 1168652 | Cover, Top |
|
- | |||||
| 5 | 1182600 | Cover, Front |
|
- | |||||
| 6 | 1172075 | Float |
|
$ 5.53 | |||||
| 8 | 1182080 | Bucket, Condensate |
|
- | |||||
| 10 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 10 | 505168 | Tape, No Drip Valve, Access |
|
- | |||||
| 10 | 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 | ||||
| 10 | SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 18.65 | |||||
| 10 | 978028 | 1/2`` Tube O.d. |
|
- | |||||
| 10 | 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | |||||
| 10 | 978030 | 3/4`` Tube O.d. |
|
$ 137.25 | |||||
| 10 | WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 10 | WP3196557 | Screw (Replaces: 1168744) |
|
Immediately | $ 7.95 | ||||
| 10 | 484310 | Epoxy, Tube (aluminum Repair) |
|
- |
