SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow


03 - Cabinet


04 - Control Module


05 - Optional

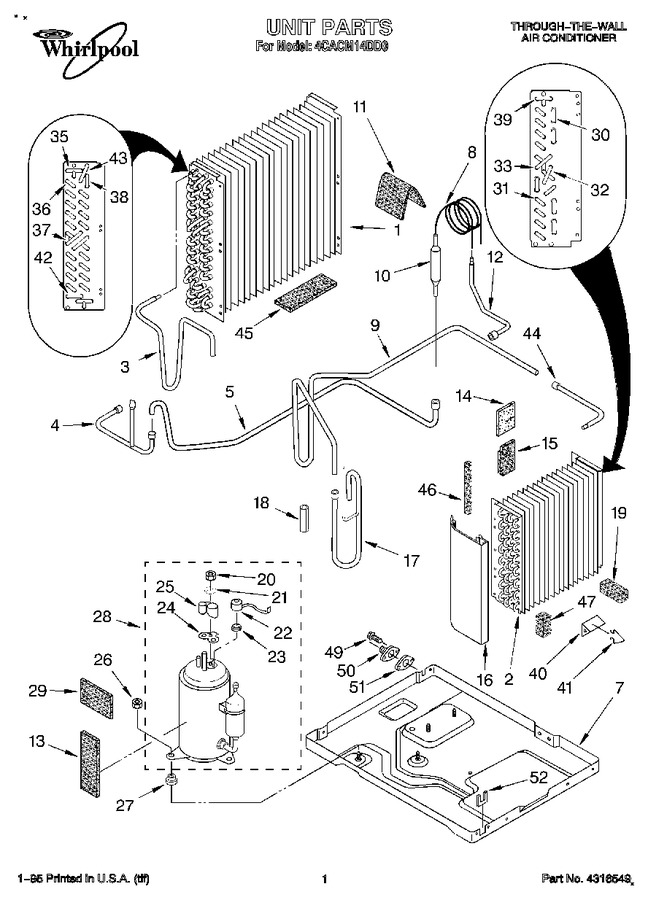

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180221		Condenser		Appelez-nous	-
2	1180217		Evaporator		Appelez-nous	-
3	1180692		Tube, Discharge		Appelez-nous	-
4	1180287		Tube, Process		Appelez-nous	-
5	1180691		Tube, Wet Loop		Appelez-nous	-
7	1180143		Base		Appelez-nous	-
8	1180753		Tube, Restrictor (2 Required)		Appelez-nous	-
9	1180750		Tube, Suction/evaporator		Appelez-nous	-
10	1180617		Strainer		Appelez-nous	-
11	1162650		Insulation, Restrictor Tube		Appelez-nous	-
12	1180733		Tube, Inlet (row 3)		Appelez-nous	-
12	1180669		Tube, Inlet (row 1)		Appelez-nous	-
13	1162616		Seal, Anti-rub		Appelez-nous	-
14	1180988		Seal, Suction Tube		Appelez-nous	-
15	1180496		Seal, Inlet Tube		Appelez-nous	-
16	1180159		Cover, Hair Pin		Appelez-nous	-
17	1180694		Tube, Suction/compressor		Appelez-nous	-
18	1163850		Dampener		Appelez-nous	-
19	1181046		Seal, Return Bend		Appelez-nous	-
20	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.78
21	950037		Gasket, Nut		Appelez-nous	-
22	WP1161170		Overload   (Replaces: 1156604)				$ 94.13
23	950032		Spring, Overload		Appelez-nous	-
24	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 86.68
25	WP950036		Cover, Terminal   (Replaces: 950036)				$ 10.92
26	1180339		Nut, 8mm		Appelez-nous	-
27	WP950021		Grommet, Compressor Mounting   (Replaces: 950021)				$ 87.77
28	1156399		Compressor		Appelez-nous	-
29	1180923		Seal, Compressor		Appelez-nous	-
30	855199		Bend, Return (5 Required)		Appelez-nous	-
31	997669		Bend, Return (11 Required)		Appelez-nous	-
32	1156529		Bend, Return (1)		Appelez-nous	-
33	854625		Bend, Return (1)		Appelez-nous	-
35	1156107		Bend, Return (3-way)		Appelez-nous	-
36	708532		Bend, Return (19 Required)		Appelez-nous	-
37	1156329		Bend, Return (2 Required)		Appelez-nous	-
38	708531		Bend, Return (3 Required)		Appelez-nous	-
39	953167		Bend, Return 3-way		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
42	1156533		Bend, Return (1)		Appelez-nous	-
43	1158407		Bend, Return (1)		Appelez-nous	-
44	1180622		Tube, Outlet		Appelez-nous	-
45	1180926		Deflector, Water (foam)		Appelez-nous	-
46	1180984		Seal, Hairpin (cover)		Appelez-nous	-
47	1180989		Seal, Hairpin (lower)		Appelez-nous	-
49	1180668		Screw No.8 X 3/8		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180435		Deluxe Remote Owners Manual		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
52	1180474		Wiring Diagram		Appelez-nous	-
52	1180137		Owners Manual/installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
