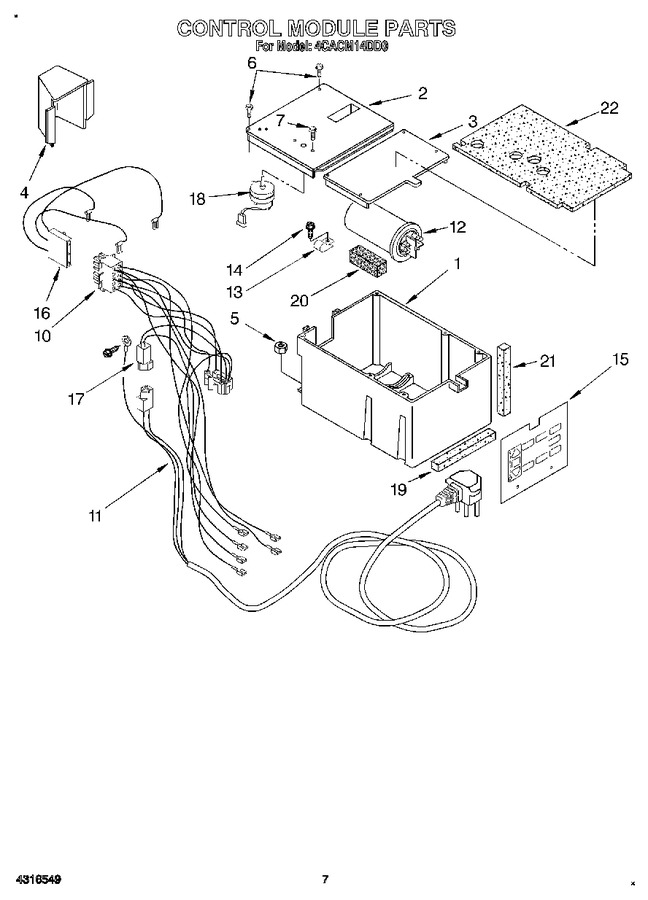

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1180175		Lid, Capacitor		Appelez-nous	-
3	1180440		Lid, Controls		Appelez-nous	-
4	1180332		Shield, Rain		Appelez-nous	-
5	1180008		Nut, Hex 5mm		Appelez-nous	-
6	1180780		Screw (tamper- Resistant)		Appelez-nous	-
7	489392		Screw No.6   (Replaces: 1180485)				$ 14.02
11	1180266		Cable, Appliance		Appelez-nous	-
12	1162595		Capacitor		Appelez-nous	-
13	1180099		Relief, Strain		Appelez-nous	-
14	1180668		Screw No.8		Appelez-nous	-
15	1180445		Overlay (chinese)		Appelez-nous	-
16	1180892		Harness, Wiring (compressor)		Appelez-nous	-
18	1180355		Motor, Air Swing (not Included In Complete Assembly)		Appelez-nous	-
19	1180340		Sealer, Foam		Appelez-nous	-
20	1180503		Spacer, Foam		Appelez-nous	-
21	WP854334		Seal, Spacer   (Replaces: 1180845)				$ 13.94
22	1180208		Control Box (complete)		Appelez-nous	-
22	1180418		Seal, Control Box		Appelez-nous	-
