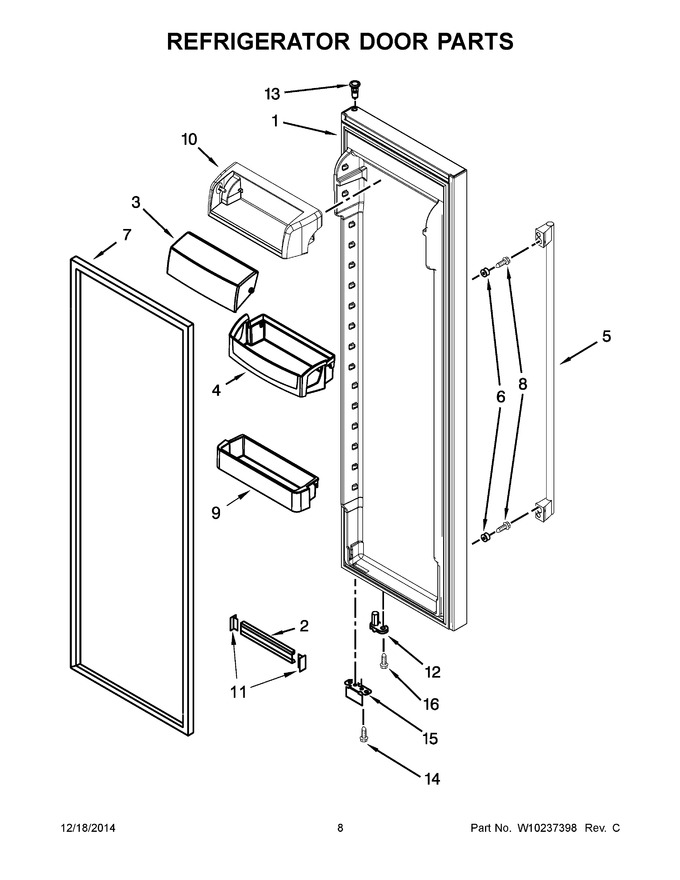

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168248		Door, Refrigerator (white)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Door, Dairy				$ 34.76
4	WPW10321304		Bin, Door   (Replaces: 2304235K)			Immediately	$ 40.46
5	WPW10202821		Assembly, Handle (stainless)   (Replaces: W10202821)				$ 274.10
6	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.69
7	2223841		Gasket, Door (mist Beige)		Appelez-nous	-
8	WP488163		Screw   (Replaces: 488208)				$ 7.13
9	WP2224173		Bin, Shallow Door   (Replaces: 2224173)				$ 82.52
10	2223879		Compartment, Dairy				$ 40.49
11	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 11.51
12	2307048		Closer, Door		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.34
14	WP489483		Screw   (Replaces: 489420)				$ 10.27
15	2306940		Bracket, Door Stop (silver)				$ 91.74
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
15A	2306940B		Bracket, Door Stop (black)				$ 35.07
1A	W10172106		Door, Refrigerator (stainless)		Appelez-nous	-
7A	2223911		Gasket, Door (black)		Appelez-nous	-
